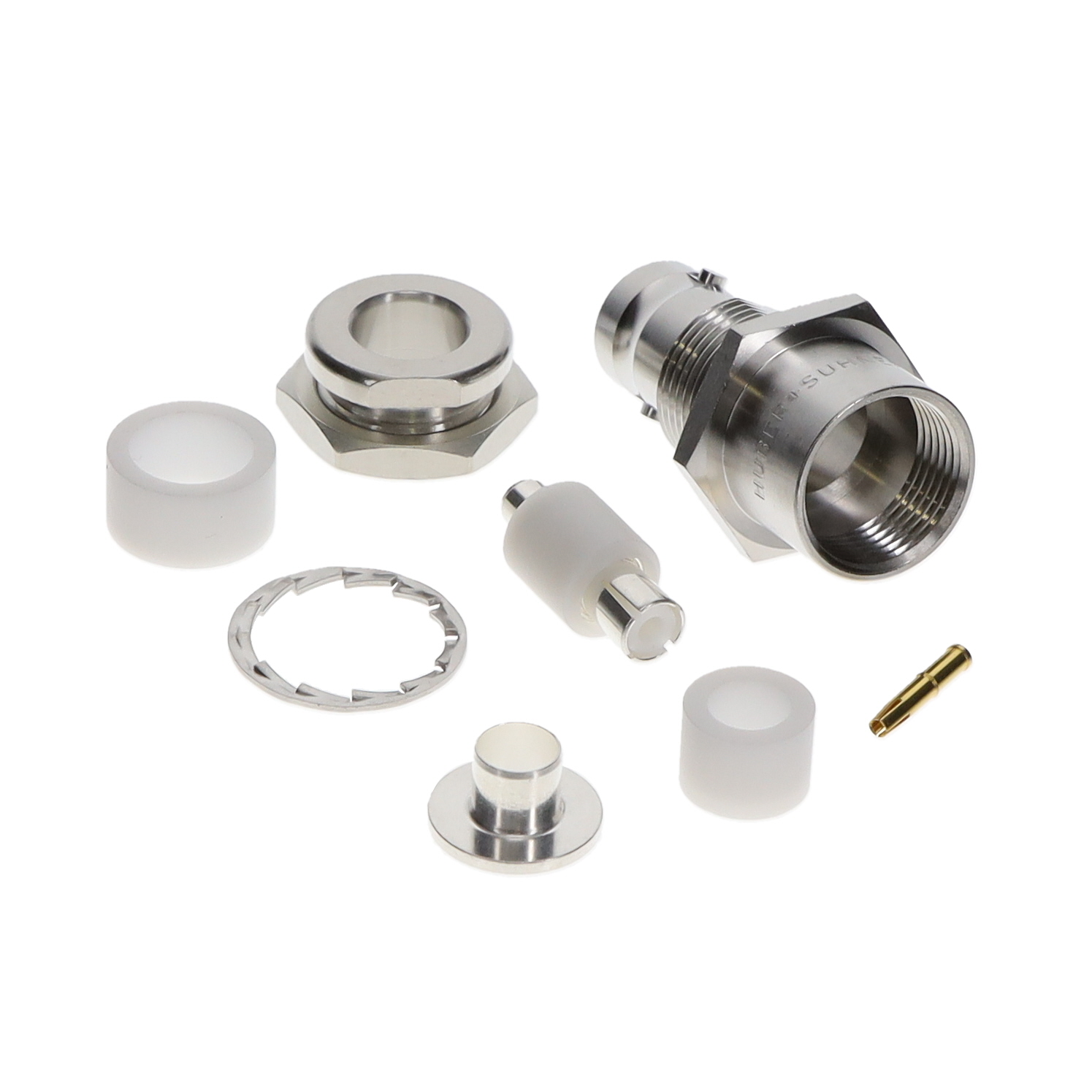

24_BNT-50-3-1/103_NE

Active

Huber+Suhner, Inc.

RF COAX CONN, BNT, BULKHEAD JACK, 50 OHM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

RF COAX CONN, BNT, BULKHEAD JACK, 50 OHM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	24_BNT-50-3-1/103_NE

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNT
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Perfluoroalkoxy (PFA), Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	3 GHz
Housing Color	Silver
Impedance	50 Ohms
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-50 °C
Shield Termination	Clamp

Part	Center Contact Plating	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Body Material	Contact Termination	Center Contact Material	Connector Type	Shield Termination	Connector Style	Body Finish	Mounting Feature	Fastening Type	Number of Ports	Housing Color	Frequency - Max [Max]	Impedance
Huber+Suhner, Inc. 24_BNT-50-2-1/103_NE	Gold	-50 °C	125 °C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Bronze	Solder	Beryllium Copper	Female Socket Jack	Clamp	BNT	Silver	Bulkhead - Front Side Nut	Bayonet Lock	1	Silver	3 GHz	50 Ohms
Huber+Suhner, Inc. 24_BNT-50-3-1/103_NE	Gold	-50 °C	125 °C	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Brass	Solder	Beryllium Copper	Female Socket Jack	Clamp	BNT	White Bronze	Bulkhead - Front Side Nut	Bayonet Lock	1	Silver	3 GHz	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNT Connector Jack, Female Socket 50 Ohms Panel Mount Solder
