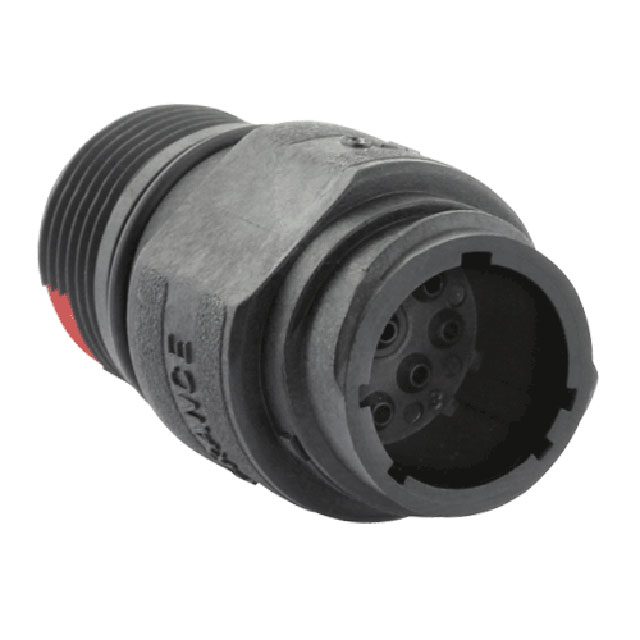

CL1C2101
ActiveSouriau-Sunbank by Eaton
CONN RCPT HSNG MALE 9POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CL1C2101
ActiveSouriau-Sunbank by Eaton
CONN RCPT HSNG MALE 9POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CL1C2101 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp and Solder Cup |
| Fastening Type | Twist Latch |
| Housing Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 9 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Shell Material | Thermoplastic, Halogen Free |
| Shielding | Unshielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.12 | |
| 10 | $ 7.31 | |||
| 25 | $ 6.89 | |||
| 50 | $ 6.71 | |||
| 100 | $ 6.53 | |||
| 250 | $ 6.22 | |||
Description
General part information
CL1C2 Series
9 Position Circular Connector Receptacle Housing Free Hanging (In-Line)
