G3B15AH-XC

Active

NKK Switches

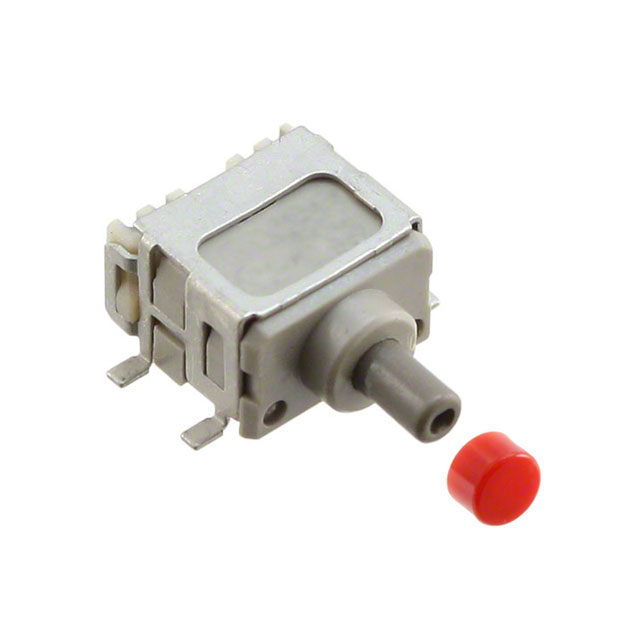

PUSHBUTTON SWITCH, G3B SERIES, SPDT, ON-(ON), ROUND, RED

Search across all available documentation for this part.

Active

NKK Switches

PUSHBUTTON SWITCH, G3B SERIES, SPDT, ON-(ON), ROUND, RED

Technical Specifications

Parameters and characteristics for this part

Part	Electrical Life	Current Rating (Amps)	Switch Function	Voltage Rating - DC	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage Rating - AC	Actuator Type	Color - Actuator/Cap	Features	Actuator Marking	Type	Circuit
NKK Switches G3B15AH-R-XA	50000 Cycles	0.4 VA	On-Mom	28 V	Gull Wing	-30 ░C	85 °C	Surface Mount Right Angle	28 V	Button Round	Black	Process Sealed	No Marking	Standard	SPDT
NKK Switches G3B15AH-XA	50000 Cycles	0.4 VA	On-Mom	28 V	Gull Wing	-30 ░C	85 °C	Surface Mount Right Angle	28 V	Button Round	Black	Process Sealed	No Marking	Standard	SPDT
NKK Switches G3B15AH-R-YA	50000 Cycles	0.4 VA	On-Mom	28 V	Gull Wing	-30 ░C	85 °C	Surface Mount Right Angle	28 V	Button Round	Black	Process Sealed	No Marking	Standard	SPDT
NKK Switches G3B15AH-R	50000 Cycles	0.4 VA	On-Mom	28 V	Gull Wing	-30 ░C	85 °C	Surface Mount Right Angle	28 V	Round Plunger		Process Sealed	No Marking	Standard	SPDT
NKK Switches G3B15AH-XC	50000 Cycles	0.4 VA	On-Mom	28 V	Gull Wing	-30 ░C	85 °C	Surface Mount Right Angle	28 V	Button Round	Red	Process Sealed	No Marking	Standard	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPDT Standard Surface Mount, Right Angle
