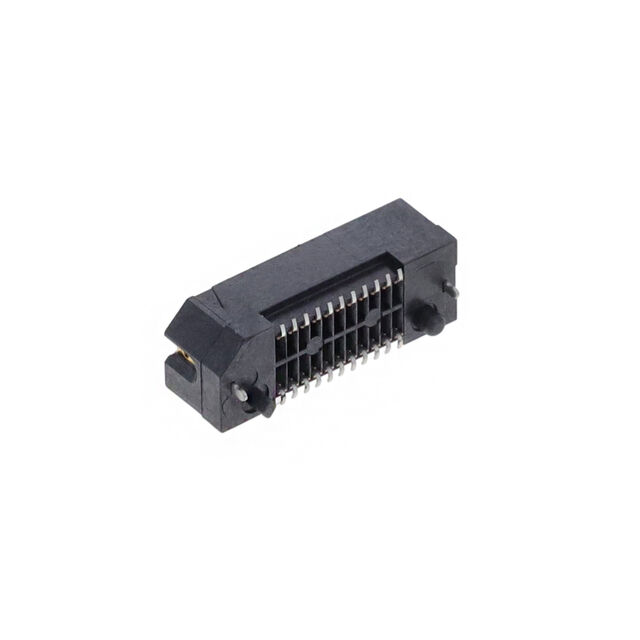

ASP-137969-02

Active

Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS "ASP\/

Search across all available documentation for this part.

Active

Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS "ASP\/

Technical Specifications

Parameters and characteristics for this part

Specification	ASP-137969-02

Connector Type	Socket, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	VITA 57
Height Above Board	0.21 in
Height Above Board	5.33 mm
Mounting Type	Surface Mount
Number of Positions	22 positions
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Number of Rows	Features	Connector Type	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Finish
Samtec Inc. ASP-137969-02	2	VITA 57	Socket Center Strip Contacts	0.8 mm	0.031 in	0.21 in	5.33 mm	22 positions	0.76 Ám	30 Áin	Surface Mount	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

22 Position Connector Socket, Center Strip Contacts Surface Mount Gold
