031-5911-RFX

Active

Amphenol RF

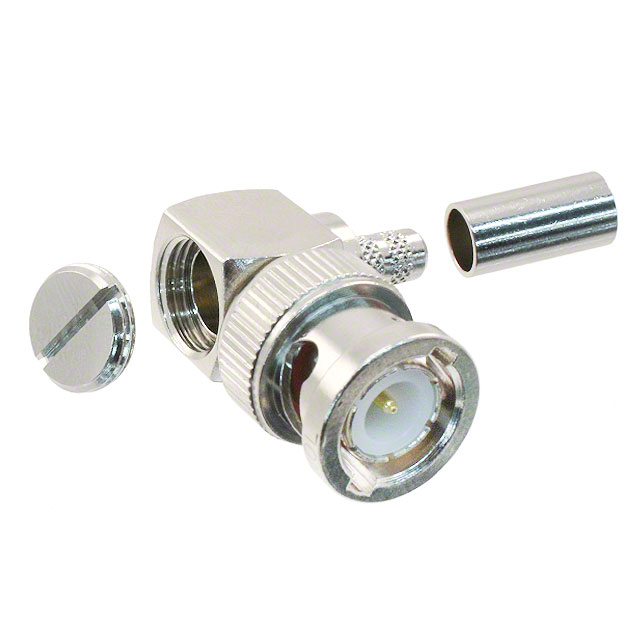

CONN BNC PLUG R/A 50 OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC PLUG R/A 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	031-5911-RFX

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 End Cap
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Body Finish	Frequency - Max [Max]	Contact Termination	Fastening Type	Housing Color	Impedance	Center Contact Plating	Center Contact Material	Number of Ports	Includes	Insertion Loss	Voltage Rating	Connector Type	Connector Style	Shield Termination	Body Material	Mating Cycles	Cable Group	Dielectric Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF 031-5911-RFX	Nickel	4 GHz	Solder	Bayonet Lock	Silver	50 Ohms	Gold	Brass	1	1 Connector 1 End Cap 1 Ferrule	0.2 dB	500 V	Male Pin Plug	BNC	Crimp	Brass	500	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	-65 ░C	165 °C
Amphenol RF 031-5998-RFX	Nickel	4 GHz	Crimp	Bayonet Lock	Silver	50 Ohms	Gold	Brass	1	1 Connector 1 Contact 1 Ferrule	0.2 dB	500 V	Male Pin Plug	BNC	Crimp	Brass	500	Belden 9913 Belden 9914 LMR-400	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 5.12

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
