45125-521

Active

Laird Thermal Systems, Inc.

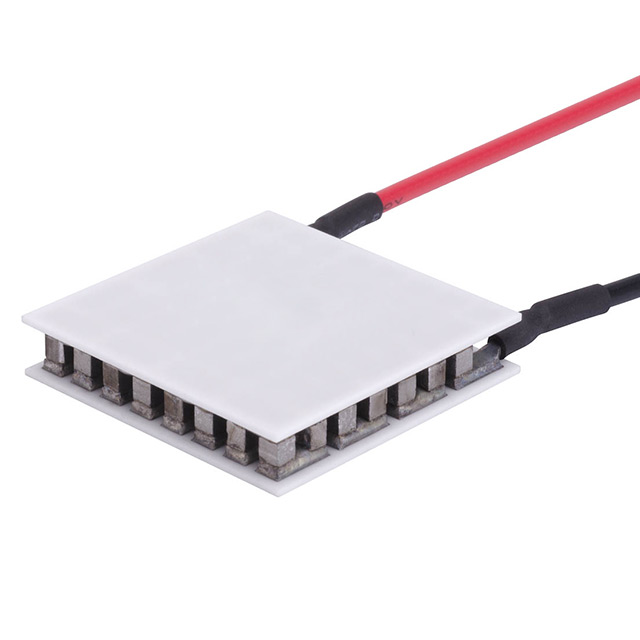

PELTIER CP2,31,06,L1,RT,W4.5

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

PELTIER CP2,31,06,L1,RT,W4.5

Technical Specifications

Parameters and characteristics for this part

Specification	45125-521

Current - Max [Max]	14 A
Delta Tmax @ Th	68 °C
Features	Sealed - Silicone RTV, Lead Wires
Height [z]	4.57 mm
Number of Stages	1
Operating Temperature	80 °C
Qmax @ Th	29.3 W
Resistance	23 mOhms
Size / Dimension [x]	29.7 mm
Size / Dimension [y]	29.7 mm
Voltage - Max [Max]	3.5 V

Part	Qmax @ Th	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature	Voltage - Max [Max]	Resistance	Height [z]	Delta Tmax @ Th	Number of Stages	Features
Laird Thermal Systems, Inc. 45125-521	29.3 W	14 A	29.7 mm	29.7 mm	80 °C	3.5 V	23 mOhms	4.57 mm	68 °C	1	Lead Wires Sealed - Silicone RTV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 29.3W @ 25°C 14 A 80°C
