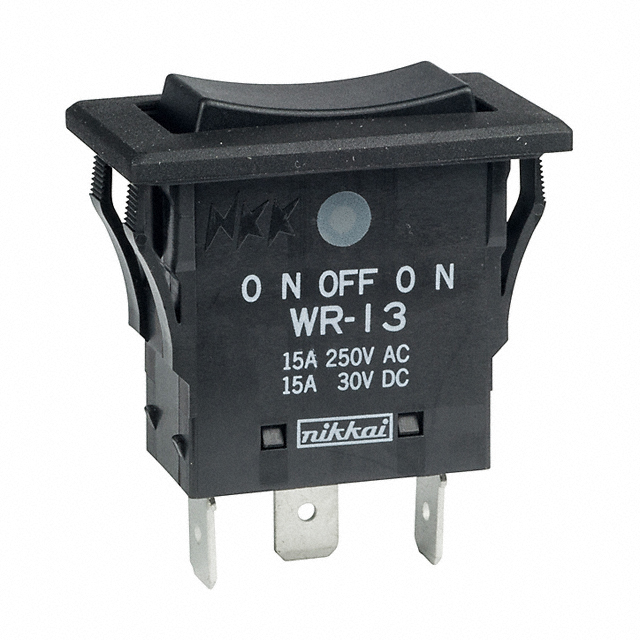

WR13AFN

Active

NKK Switches

ROCKER SWITCH, SEALED, ON-OFF-ON, SPDT, NON ILLUMINATED, PANEL, SNAP-IN, BLACK, WR SERIES

Search across all available documentation for this part.

Active

NKK Switches

ROCKER SWITCH, SEALED, ON-OFF-ON, SPDT, NON ILLUMINATED, PANEL, SNAP-IN, BLACK, WR SERIES

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Termination Style	Color - Actuator/Cap	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Features	Voltage Rating - DC	Mechanical Life	Switch Function	Ingress Protection	Current Rating (Amps)	Voltage Rating - AC	Mounting Type	Actuator Type	Circuit
NKK Switches WR13AF/UCV	EN UL	Quick Connect - 0.250" (6.3mm)	Black	No Marking	-25 °C	85 °C	10000 Cycles	Epoxy Sealed Terminals	30 V	30000 Steps	On-Off-On	IP67 - Dust Tight Waterproof	15 A	125 V	Panel Mount Snap-In	Concave (Curved)	SPDT
NKK Switches WR13AFN	EN UL	Quick Connect - 0.250" (6.3mm)	Black	No Marking	-25 °C	85 °C	10000 Cycles	Epoxy Sealed Terminals	30 V	30000 Steps	On-Off-On	IP67 - Dust Tight Waterproof	15 A	125 V	Panel Mount Snap-In	Concave (Curved)	SPDT
NKK Switches WR13AFN/UCV	EN UL	Quick Connect - 0.250" (6.3mm)	Black	No Marking	-25 °C	85 °C	10000 Cycles	Epoxy Sealed Terminals	30 V	30000 Steps	On-Off-On	IP67 - Dust Tight Waterproof	15 A	125 V	Panel Mount Snap-In	Concave (Curved)	SPDT
NKK Switches WR13AFN/V	EN UL	Quick Connect - 0.250" (6.3mm)	Black	No Marking	-25 °C	85 °C	10000 Cycles	Epoxy Sealed Terminals	30 V	30000 Steps	On-Off-On	IP67 - Dust Tight Waterproof	15 A	125 V	Panel Mount Snap-In	Concave (Curved)	SPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 15A (AC/DC) 125 V Panel Mount, Snap-In
