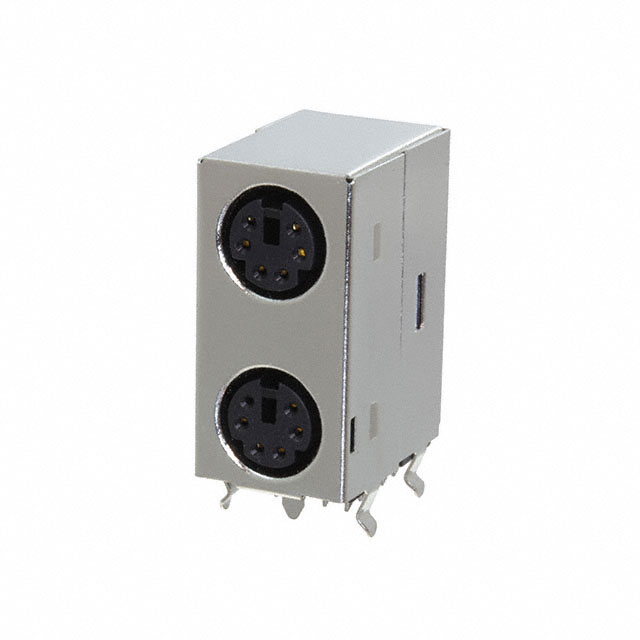

MDJD-006-FS-RT

Active

Adam Tech

CONN JACK FMALE MIN DIN 6/6P SLD

Search across all available documentation for this part.

Active

Adam Tech

CONN JACK FMALE MIN DIN 6/6P SLD

Technical Specifications

Parameters and characteristics for this part

Specification	MDJD-006-FS-RT

Applications	Video, Audio
Color	Silver
Connector Type	Female Sockets, Jack
Contact Finish - Mating	Gold
Contact Material	Phosphor Bronze
Fastening Type	Push-Pull
Features	Board Guide, Board Lock
Insert Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Orientation	Keyed
Primary Material	Metal
Shell Finish	Tin
Shell Material	Copper Alloy
Shell Size - Insert	Mini DIN
Shielding	Shielded
Termination	Solder
Voltage Rating	100 VAC, 12 V

Part	Material Flammability Rating	Termination	Mounting Type	Shell Size - Insert	Contact Finish - Mating	Voltage Rating	Connector Type	Insert Material	Shell Material	Primary Material	Contact Material	Fastening Type	Shell Finish	Shielding	Color	Features	Orientation	Applications	Number of Positions
Adam Tech MDJD-006-FS-RT	UL94 V-0	Solder	Through Hole Right Angle	Mini DIN	Gold	12 V 100 VAC	Female Sockets Jack	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Metal	Phosphor Bronze	Push-Pull	Tin	Shielded	Silver	Board Guide Board Lock	Keyed	Audio Video	6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
