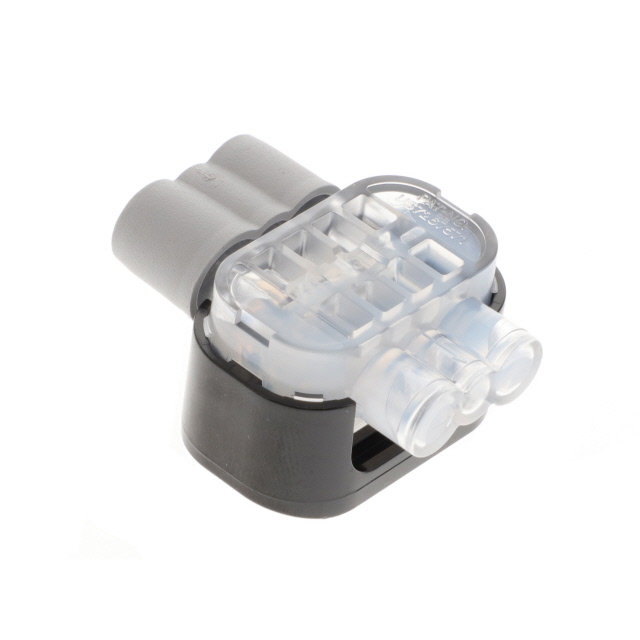

MGC-BAG
Active3M (TC)
CONN INLINE TAP 12-20 AWG IDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MGC-BAG
Active3M (TC)
CONN INLINE TAP 12-20 AWG IDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MGC-BAG |
|---|---|
| Features | Gel Filled |
| Insulation | Fully Insulated |
| Number of Wire Entries | 3 |
| Terminal Type | Tap, Inline |
| Termination | IDC |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.53 | |
| 10 | $ 3.46 | |||
| 25 | $ 3.12 | |||
| 50 | $ 2.89 | |||
| 100 | $ 2.68 | |||
| 250 | $ 2.43 | |||
| 500 | $ 2.26 | |||
| 1000 | $ 2.11 | |||
| 2500 | $ 1.93 | |||
Description
General part information
MGC Series
Terminal Inline, Tap Connector IDC 12-20 AWG
