CMF2.1131.12

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C8 PANEL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C8 PANEL

Technical Specifications

Parameters and characteristics for this part

Specification	CMF2.1131.12

Accomodates a Fuse	False
Approval Agency	cULus, CCC, VDE
Connector Style	IEC 320-C8
Connector Type	Receptacle, Male Pins - Module
Current Rating - Appliance Inlet	2.5 A
Features	Terminating Cover
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount, Snap-In
Number of Positions	2
Panel Thickness	2 mm
Panel Thickness	0.079 in
Switch Features	Switch On-Off
Termination	Solder
Voltage Rating - Appliance Inlet	250 VAC

Part	Voltage Rating - Appliance Inlet	Features	Connector Type	Ingress Protection	Filter Type	Number of Positions	Approval Agency	Accomodates a Fuse	Current Rating - Appliance Inlet	Termination	Mounting Type	Panel Thickness	Panel Thickness	Material Flammability Rating	Connector Style	Switch Features
SCHURTER Inc. CMF2.1131.12	250 VAC	Terminating Cover	Receptacle Male Pins - Module	IP40	Unfiltered - Commercial	2	CCC cULus VDE		2.5 A	Solder	Panel Mount Snap-In Through Hole Right Angle	2 mm	0.079 in	UL94 V-0	IEC 320-C8	Switch On-Off

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

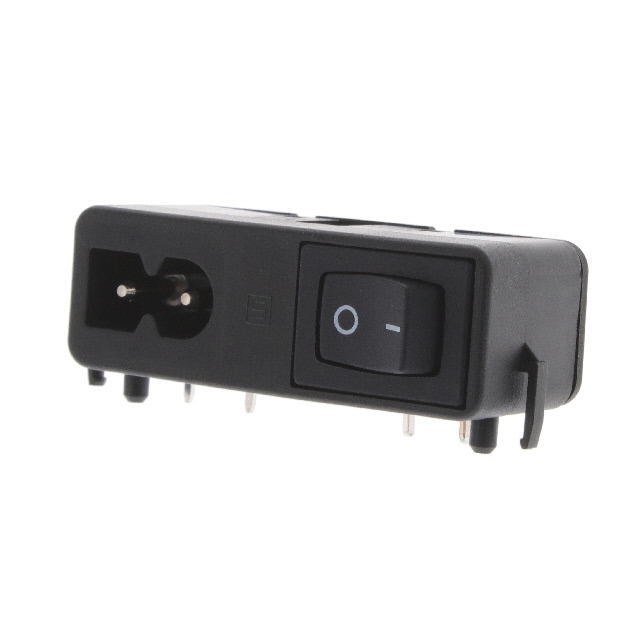

Power Entry Connector Receptacle, Male Pins - Module IEC 320-C8 Panel Mount, Snap-In; Through Hole, Right Angle
