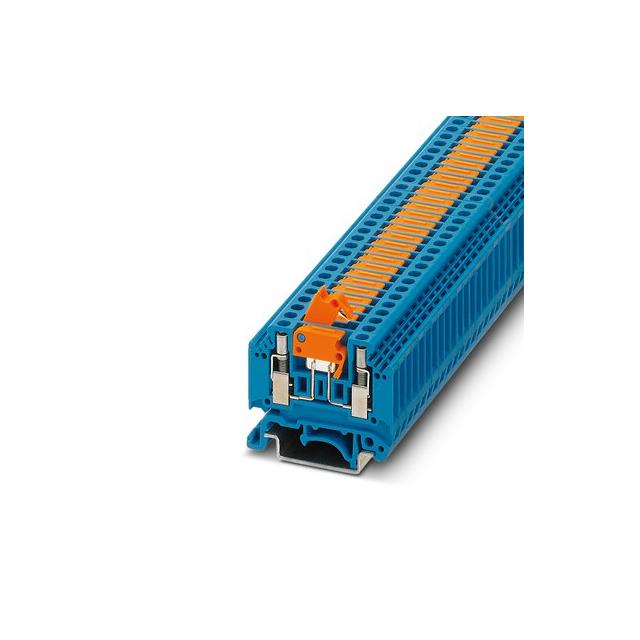

3104123

Active

Phoenix Contact

DIN RAIL TERMINAL BLOCKS MTK-P/P MIT SPERRE BU

Search across all available documentation for this part.

Active

Phoenix Contact

DIN RAIL TERMINAL BLOCKS MTK-P/P MIT SPERRE BU

Technical Specifications

Parameters and characteristics for this part

Specification	3104123

Color	Blue
Current - IEC	16 A
Disconnect Type	Switch, Knife
Material - Insulation	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Number of Levels	1
Number of Positions	2
Stripping Length	7 mm
Terminal - Width [y]	5.2 mm
Termination Style	Screw
Type	Disconnect
Voltage - IEC	400 V
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm² [Max]	4 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²

Terminal Block Tools & Accessories D-MTK

Part	Type	Color	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Number of Levels	Number of Positions	Disconnect Type	Material - Insulation	Terminal - Width [y]	Current - IEC	Termination Style	Material Flammability Rating	Stripping Length	Voltage - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	For Use With/Related Products
Phoenix Contact 3104123	Disconnect	Blue	24 AWG	12 AWG	1	2	Knife Switch	Nylon Polyamide (PA)	5.2 mm	16 A	Screw	UL94 V-0	7 mm	400 V	0.2 mm²	4 mm²
Phoenix Contact 3101029	End Plate Rail Type	Gray															CLIPLINE MTK and MTKD Series

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Terminal Block Tools & Accessories D-MTK

Technical documentation and resources
