ACA-20PC-4-AC1-RL-C

Active

Murata Power Solutions Inc.

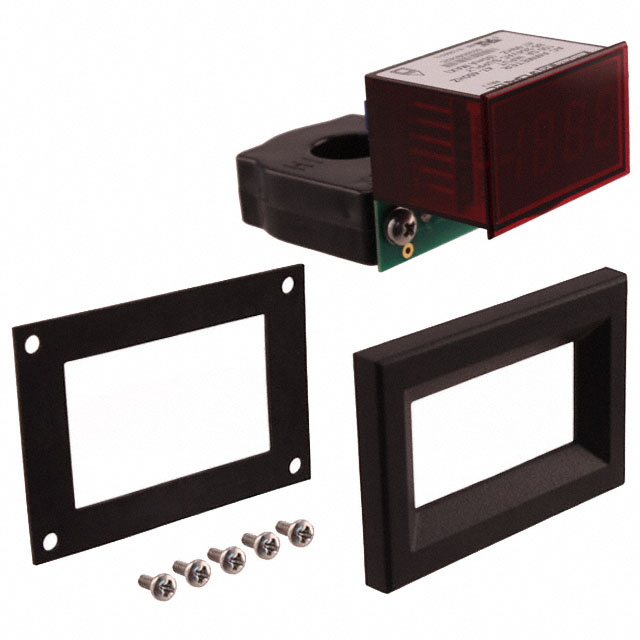

AMMETER 0-100A LED PANEL MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN +1

ACA-20PC-4-AC1-RL-C

Active

Murata Power Solutions Inc.

AMMETER 0-100A LED PANEL MOUNT

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ACA-20PC-4-AC1-RL-C

Display Characters - Height	9.4 mm
Display Characters - Height	0.37 in
Display Type	LED - Red Characters
Features	Built In Current Transformer (Primary)
Measuring Range [Max]	100 A
Measuring Range [Min]	0 A
Measuring Type	Current
Mounting Type	Panel Mount - Bezel
Number of Characters Per Row	3.5
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [x]	33.93 mm
Panel Cutout Dimensions [y]	21.29 mm
Termination Style	Screw Terminal
Type	Ammeter
Voltage - Supply [Max]	264 VAC
Voltage - Supply [Min]	85 VAC
Weight	43.09 g
Weight	0.095 lb

ACA-20PC Series

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Measuring Range [Min]	Measuring Range [Max]	Weight	Weight	Features	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Number of Characters Per Row	Measuring Type	Display Characters - Height	Display Characters - Height	Operating Temperature [Max]	Mounting Type	Termination Style	Display Type
Murata Power Solutions Inc. ACA-20PC-2-AC1-BL-C	33.93 mm	21.29 mm	0	19.99 A	0.068 lb	30.84 g	Built In Current Transformer (Primary)	85 VAC	264 VAC	Ammeter	3.5	Current	9.4 mm	0.37 in	60 °C	Panel Mount - Bezel	Screw Terminal
Murata Power Solutions Inc. ACA-20PC-3-AC1-BL-C	33.93 mm	21.29 mm	0 A	50 A	0.082 lb	37.19 g	Built In Current Transformer (Primary)	85 VAC	264 VAC	Ammeter	3.5	Current	9.4 mm	0.37 in	60 °C	Panel Mount - Bezel	Screw Terminal
Murata Power Solutions Inc. ACA-20PC-3-AC1-PGL-C	33.93 mm	21.29 mm	0 A	50 A	0.082 lb	37.19 g	Built In Current Transformer (Primary)	85 VAC	264 VAC	Ammeter	3.5	Current	9.4 mm	0.37 in	60 °C	Panel Mount - Bezel	Screw Terminal	LED - Green Characters
Murata Power Solutions Inc. ACA-20PC-2-DC1-RL-C	33.93 mm	21.29 mm	0	19.99 A	0.068 lb	30.84 g	Built In Current Transformer (Primary)	4.75 V	40 VDC	Ammeter	3.5	Current	9.4 mm	0.37 in	60 °C	Panel Mount - Bezel	Screw Terminal	LED - Red Characters
Murata Power Solutions Inc. ACA-20PC-2-AC1-PGL-C	33.93 mm	21.29 mm	0	19.99 A	0.068 lb	30.84 g	Built In Current Transformer (Primary)	85 VAC	264 VAC	Ammeter	3.5	Current	9.4 mm	0.37 in	60 °C	Panel Mount - Bezel	Screw Terminal	LED - Green Characters
Murata Power Solutions Inc. ACA-20PC-3-DC1-RL-C	33.93 mm	21.29 mm	0 A	50 A	0.082 lb	37.19 g	Built In Current Transformer (Primary)	4.75 V	40 VDC	Ammeter	3.5	Current	9.4 mm	0.37 in	60 °C	Panel Mount - Bezel	Screw Terminal	LED - Red Characters
Murata Power Solutions Inc. ACA-20PC-4-AC1-RL-C	33.93 mm	21.29 mm	0 A	100 A	0.095 lb	43.09 g	Built In Current Transformer (Primary)	85 VAC	264 VAC	Ammeter	3.5	Current	9.4 mm	0.37 in	60 °C	Panel Mount - Bezel	Screw Terminal	LED - Red Characters
Murata Power Solutions Inc. ACA-20PC-4-AC1-RL-L-C	33.93 mm	21.29 mm	0 A	100 A	0.095 lb	43.09 g	Built In Current Transformer (Primary)	85 VAC	264 VAC	Ammeter	3.5	Current	9.4 mm	0.37 in	60 °C	Panel Mount - Bezel	Screw Terminal	LED - Red Characters
Murata Power Solutions Inc. ACA-20PC-2-AC1-RL-C	33.93 mm	21.29 mm	0	19.99 A	0.068 lb	30.84 g	Built In Current Transformer (Primary)	85 VAC	264 VAC	Ammeter	3.5	Current	9.4 mm	0.37 in	60 °C	Panel Mount - Bezel	Screw Terminal	LED - Red Characters
Murata Power Solutions Inc. ACA-20PC-4-DC1-RL-C	33.93 mm	21.29 mm	0 A	100 A	0.095 lb	43.09 g	Built In Current Transformer (Primary)	4.75 V	40 VDC	Ammeter	3.5	Current	9.4 mm	0.37 in	60 °C	Panel Mount - Bezel	Screw Terminal	LED - Red Characters
