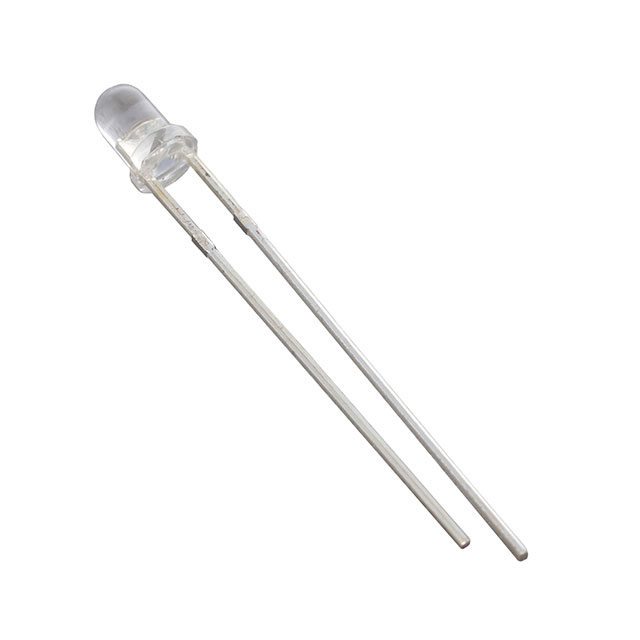

UV3TZ-400-30
ActiveBivar Inc.
LED, THROUGH HOLE, 3 MM, UV, 400NM, WATER CLEAR LENS, 30 DEG VIEWING ANGLE, FLANGED / BAG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UV3TZ-400-30
ActiveBivar Inc.
LED, THROUGH HOLE, 3 MM, UV, 400NM, WATER CLEAR LENS, 30 DEG VIEWING ANGLE, FLANGED / BAG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UV3TZ-400-30 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 20 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 80 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Top View |
| Package / Case | Radial |
| Type | Ultraviolet (UV) |
| Viewing Angle | 30 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength | 400 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
UV3TZ-400 Series
Ultraviolet (UV) Emitter 400nm 3.3V 20mA 30° Radial
