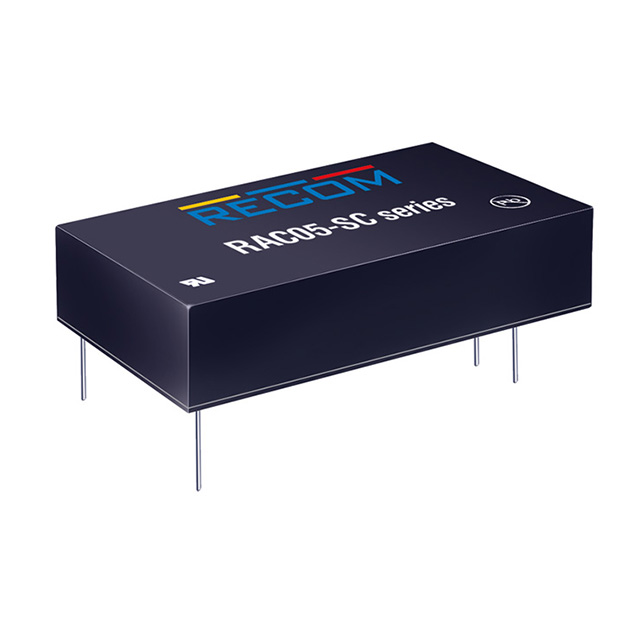

RAC05-15DC

RECOM Power

AC/DC POWER MODULES 5W 90-264VIN +/-15V THT

Search across all available documentation for this part.

RECOM Power

AC/DC POWER MODULES 5W 90-264VIN +/-15V THT

Technical Specifications

Parameters and characteristics for this part

Specification	RAC05-15DC

Applications	ITE (Commercial)
Approval Agency	CE, cULus, EN
Current - Output (Max)	170 mA
Current - Output (Max)	170 mA
Efficiency	77 %
Features	Universal Input
Line Regulation	0.3 %
Load Regulation	0.5 %
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [custom]	-25 °C, 75 °C
Package / Case	5-DIP Module
Power (Watts)	5 W
Size / Dimension [x]	55 mm
Size / Dimension [x]	2.17 "
Size / Dimension [y]	45 mm
Size / Dimension [y]	1.77 "
Size / Dimension [z]	0.82 in
Size / Dimension [z]	21 mm
Standard Number	60950-1
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	15 V
Weight	34.93 g
Weight	0.077 lb

AC/DC Power Modules 5W 90-264VIN +/-15V THT

Part	Type	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Load Regulation	Power (Watts)	Efficiency	Package / Case	Package / Case	Mounting Type	Operating Temperature [custom]	Features	Current - Output (Max) [Max]	Approval Agency	Line Regulation	Standard Number	Voltage - Output 1	Weight	Weight	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max)	Current - Output (Max)
RECOM Power RAC05-15SC	Enclosed	1	90 VAC	264 VAC	0.5 %	5 W	76 %	4 Lead	5-DIP Module	Through Hole	-25 °C 75 °C	Universal Input	340 mA	CE cULus EN	0.3 %	60950-1	15 V	34.93 g	0.077 lb	ITE (Commercial)	55 mm	0.82 in	45 mm	21 mm	2.17 "	1.77 "
RECOM Power RAC05-15DC	Enclosed	2	90 VAC	264 VAC	0.5 %	5 W	77 %		5-DIP Module	Through Hole	-25 °C 75 °C	Universal Input		CE cULus EN	0.3 %	60950-1	15 V	34.93 g	0.077 lb	ITE (Commercial)	55 mm	0.82 in	45 mm	21 mm	2.17 "	1.77 "	170 mA	170 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC Power Modules 5W 90-264VIN +/-15V THT
