683M9W4203L001

Active

MH Connectors

FEMALE PANEL MOUNTING 2 -55℃~+125℃ D-SUB / VGA CONNECTORS ROHS

Search across all available documentation for this part.

Active

MH Connectors

FEMALE PANEL MOUNTING 2 -55℃~+125℃ D-SUB / VGA CONNECTORS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	683M9W4203L001

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal, Coax
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	5, 4
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	3 (DB, B) - 9W4
Termination	Solder

Part	Contact Finish	Termination	Mounting Type	Connector Type	Shell Size, Connector Layout	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Color	Number of Rows	Flange Feature	Material Flammability Rating	Dielectric Material	Contact Type	Contact Finish Thickness	Shell Material, Finish	Contact Material	Number of Positions	Features
MH Connectors 683M9W4203L001	Gold	Solder	Panel Mount Through Hole	Receptacle Female Sockets	3 (DB B) - 9W4	-55 °C	125 °C	Combo D-Sub	Black	2	Housing/Shell (Unthreaded)	UL94 V-0	Polybutylene Terephthalate (PBT)	Coax Signal	Flash	Nickel Plated Steel	Brass	4 5
MH Connectors 683M9W4103L041	Gold	Solder	Panel Mount Through Hole	Male Pins Plug	3 (DB B) - 9W4	-55 °C	125 °C	Combo D-Sub	Black	2	4-40 Board Side	UL94 V-0	Polybutylene Terephthalate (PBT)	Coax Signal	Flash	Nickel Plated Steel	Brass	4 5	Board Lock Grounding Indents
MH Connectors 683M9W4203L011	Gold	Solder	Panel Mount Through Hole	Receptacle Female Sockets	3 (DB B) - 9W4	-55 °C	125 °C	Combo D-Sub	Black	2	4-40 Board Side	UL94 V-0	Polybutylene Terephthalate (PBT)	Coax Signal	Flash	Nickel Plated Steel	Brass	4 5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

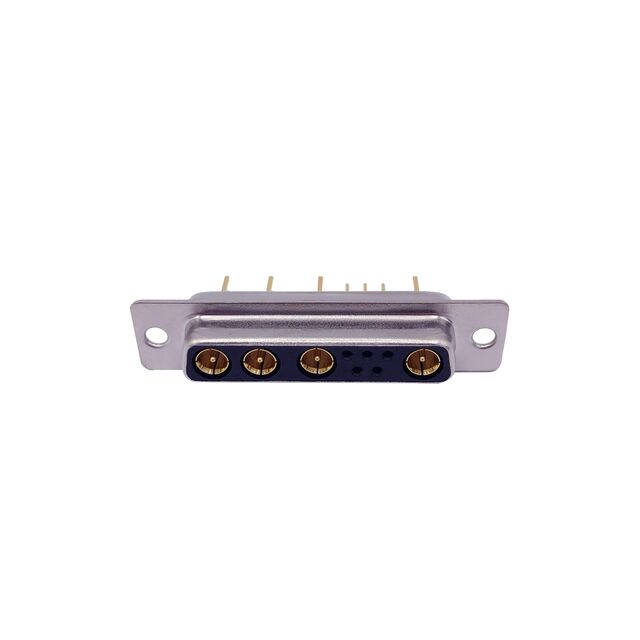

9 (5 + 4 Coax) Position D-Sub, Combo Receptacle, Female Sockets Connector
