ZMSH00130T11LLC

Active

Littelfuse/Commercial Vehicle Products

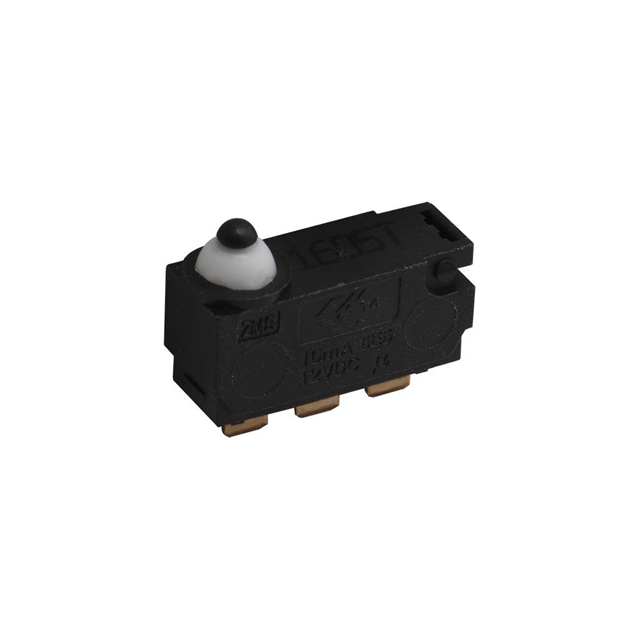

SWITCH SNAP ACT SPDT 100MA 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet snap +1

ZMSH00130T11LLC

Active

Littelfuse/Commercial Vehicle Products

SWITCH SNAP ACT SPDT 100MA 12V

Deep-Dive with AI

DocumentsDatasheet snap +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZMSH00130T11LLC

Actuator Type	Simulated Roller, Lever
Circuit	SPDT
Current Rating (Amps)	100 mA
Differential Travel	0.03 in
Differential Travel	0.76 mm
Electrical Life	300000 Cycles
Features	Support Posts
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	500000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Position	0.539 in
Operating Position	13.7 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	2.57 mm
Overtravel	0.101 "
Pretravel	0.188 in
Pretravel	4.8 mm
Release Force	45 gf
Switch Function	On-Mom
Termination Style	PC Pin
Voltage Rating - DC	12 V

Zms0 Series Series

Mini Size Snap-acting Switch

Part	Features	Differential Travel	Differential Travel	Ingress Protection	Release Force	Actuator Type	Mechanical Life	Pretravel	Pretravel	Termination Style	Voltage Rating - DC	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Overtravel	Overtravel	Mounting Type	Current Rating (Amps)	Operating Position	Operating Position	Electrical Life	Circuit	Voltage Rating - AC	Operating Force	Operating Position
Littelfuse/Commercial Vehicle Products ZMSH00130T11LLC	Support Posts	0.03 in	0.76 mm	IP65 - Dust Tight Water Resistant	45 gf	Lever Simulated Roller	500000 Cycles	0.188 in	4.8 mm	PC Pin	12 V	On-Mom	85 °C	-40 °C	2.57 mm	0.101 "	Through Hole Right Angle	100 mA	0.539 in	13.7 mm	300000 Cycles	SPDT
Littelfuse/Commercial Vehicle Products ZMSH00130T11JSC		0.03 in	0.76 mm	IP67 - Dust Tight Waterproof	45 gf	Lever Simulated Roller	500000 Cycles	0.188 in	4.8 mm	Wire Leads	12 V	On-Mom	85 °C	-40 °C	2.57 mm	0.101 "	Chassis Mount	100 mA	0.715 in	18.2 mm	300000 Cycles	SPDT
Littelfuse/Commercial Vehicle Products ZMSH03130P00JSC		0.012 "	0.3 mm	IP67 - Dust Tight Waterproof	13 gf	Round (Pin Plunger)	500000 Cycles	0.03 in	0.8 mm	Wire Leads	12 V	On-Mom	85 °C	-40 °C	1.7 mm	0.065 in	Chassis Mount	3 A	0.539 in	13.7 mm	100000 Cycles	SPDT	125 V	130 gf
Littelfuse/Commercial Vehicle Products ZMSH03130P00PSC		0.012 "	0.3 mm	IP65 - Dust Tight Water Resistant	13 gf	Round (Pin Plunger)	500000 Cycles	0.03 in	0.8 mm	PC Pin	12 V	On-Mom	85 °C	-40 °C	1.7 mm	0.065 in	Through Hole	3 A		10.55 mm	100000 Cycles	SPDT	125 V	130 gf	0.415 in
Littelfuse/Commercial Vehicle Products ZMSH00130P00PSC		0.012 "	0.3 mm	IP65 - Dust Tight Water Resistant	13 gf	Round (Pin Plunger)	500000 Cycles	0.03 in	0.8 mm	PC Pin	12 V	On-Mom	85 °C	-40 °C	1.7 mm	0.065 in	Through Hole	100 mA		10.55 mm	300000 Cycles	SPDT		130 gf	0.415 in
Littelfuse/Commercial Vehicle Products ZMSH00130T10PSC		0.02 in	0.5 mm	IP65 - Dust Tight Water Resistant	55 gf	Lever Straight	500000 Cycles	0.152 in	3.85 mm	PC Pin	12 V	On-Mom	85 °C	-40 °C	2.14 mm	0.084 "	Through Hole	100 mA	0.44 in	11.2 mm	300000 Cycles	SPDT		195 gf
Littelfuse/Commercial Vehicle Products ZMSH03130P00RRC	Support Posts	0.012 "	0.3 mm	IP65 - Dust Tight Water Resistant	13 gf	Round (Pin Plunger)	500000 Cycles	0.03 in	0.8 mm	PC Pin	12 V	On-Mom	85 °C	-40 °C	1.7 mm	0.065 in	Through Hole Right Angle	3 A		10.55 mm	100000 Cycles	SPDT	125 V	130 gf	0.415 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

Zms0 Series Series

PCB detection switches, communication devices and testing equipment rely upon the long-lasting, highly responsive ZMS series mini size snap-acting switch from C&K. The ZMS series feature a reliable snap-acting mechanism and a compact size, giving designers extra space because of its compact size – and giving their applications the long electrical and mechanical life they need.
