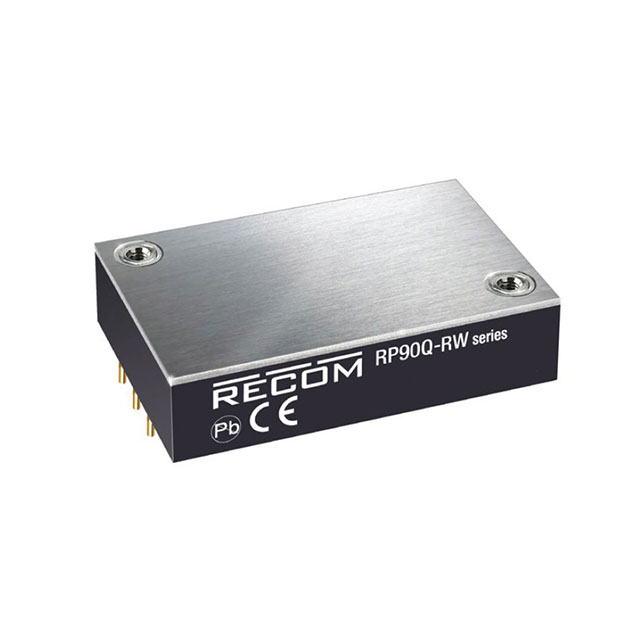

RP90Q-2424SRW/P

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 89W 9-36VIN 24VOUT 3.7A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RP90Q-2424SRW/P

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 89W 9-36VIN 24VOUT 3.7A

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP90Q-2424SRW/P

Applications	Railway, ITE (Commercial)
Current - Output (Max) [Max]	3.7 A
Efficiency	89 %
Features	OVP, UVLO, SCP, OCP, OTP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	Quarter Brick
Power (Watts)	89 W
Size / Dimension [x]	57.9 mm
Size / Dimension [x]	2.28 in
Size / Dimension [y]	1.45 in
Size / Dimension [y]	36.8 mm
Size / Dimension [z]	12.7 mm
Size / Dimension [z]	0.5 in
Supplier Device Package	Quarter Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	24 V

RP90Q-11024 Series

Isolated DC/DC Converters - Through Hole 82.5W 40-160Vin 15Vout 5.5A

Part	Type	Voltage - Isolation	Current - Output (Max)	Applications	Features	Number of Outputs	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Supplier Device Package	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Efficiency	Current - Output (Max) [Max]
RECOM Power RP90Q-11012SRW/P	Isolated Module	3000 V	7 A	ITE (Commercial) Railway	OCP OTP OVP SCP UVLO	1	40 V	160 V	12 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	84 W	Quarter Brick	Quarter Brick	-40 °C	100 °C	Through Hole	89 %
RECOM Power RP90Q-2424SRW/N-HC	Isolated Module	2250 VDC		ITE (Commercial) Railway	OCP OTP OVP SCP UVLO	1	9 V	36 V	24 V	57.9 mm	2.28 in	1.45 in	18.8 mm	36.8 mm	0.74 in	89 W	Quarter Brick	Quarter Brick	-40 °C	100 °C	Through Hole	89 %	3.7 A
RECOM Power RP90Q-4805SRW/N-HC	Isolated Module	2250 VDC		ITE (Commercial) Railway	OCP OTP OVP SCP UVLO	1	16.5 V	75 V	5 V	57.9 mm	2.28 in	1.45 in	18.8 mm	36.8 mm	0.74 in	90 W	Quarter Brick	Quarter Brick	-40 °C	100 °C	Through Hole	89 %	18 A
RECOM Power RP90Q-4805SRW/N	Isolated Module	2250 VDC		ITE (Commercial) Railway	OCP OTP OVP SCP UVLO	1	16.5 V	75 V	5 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	90 W	Quarter Brick	Quarter Brick	-40 °C	100 °C	Through Hole	89 %	18 A
RECOM Power RP90Q-2412SRW/N	Isolated Module	2250 VDC		ITE (Commercial) Railway	OCP OTP OVP SCP UVLO	1	9 V	36 V	12 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	90 W	Quarter Brick	Quarter Brick	-40 °C	100 °C	Through Hole	89 %	7.5 A
RECOM Power RP90Q-2424SRW/P	Isolated Module	2250 VDC		ITE (Commercial) Railway	OCP OTP OVP SCP UVLO	1	9 V	36 V	24 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	89 W	Quarter Brick	Quarter Brick	-40 °C	100 °C	Through Hole	89 %	3.7 A
RECOM Power RP90Q-2415SRW/N-HC	Isolated Module	2250 VDC		ITE (Commercial) Railway	OCP OTP OVP SCP UVLO	1	9 V	36 V	15 V	57.9 mm	2.28 in	1.45 in	18.8 mm	36.8 mm	0.74 in	90 W	Quarter Brick	Quarter Brick	-40 °C	100 °C	Through Hole	89 %	6 A
RECOM Power RP90Q-11005SRW/N	Isolated Module	3000 V		ITE (Commercial) Railway	OCP OTP OVP SCP UVLO	1	40 V	160 V	5 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	85 W	Quarter Brick	Quarter Brick	-40 °C	100 °C	Through Hole	89 %	17 A
RECOM Power RP90Q-11005SRW/P-HC	Isolated Module	3000 V		ITE (Commercial) Railway	OCP OTP OVP SCP UVLO	1	40 V	160 V	5 V	57.9 mm	2.28 in	1.45 in	18.8 mm	36.8 mm	0.74 in	85 W	Quarter Brick	Quarter Brick	-40 °C	100 °C	Through Hole	89 %	17 A
RECOM Power RP90Q-11024SRW/P	Isolated Module	3000 V		ITE (Commercial) Railway	OCP OTP OVP SCP UVLO	1	40 V	160 V	24 V	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	84 W	Quarter Brick	Quarter Brick	-40 °C	100 °C	Through Hole	89 %	3.5 A
