5502507F
ActiveDIALIGHT
LED CBI 5MM ORNG HI EFF RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5502507F
ActiveDIALIGHT
LED CBI 5MM ORNG HI EFF RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5502507F |
|---|---|
| Configuration | Single |
| Current | 10 mA |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Type | Diffused |
| Millicandela Rating | 7 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 60 ° |
| Voltage Rating | 1.9 V |
| Wavelength - Peak | 600 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.47 | |
| 10 | $ 0.93 | |||
| 100 | $ 0.65 | |||
| 500 | $ 0.54 | |||
| 1000 | $ 0.50 | |||
| 2000 | $ 0.47 | |||
| 5000 | $ 0.45 | |||
| 10000 | $ 0.43 | |||
Description
General part information
5502507 Series

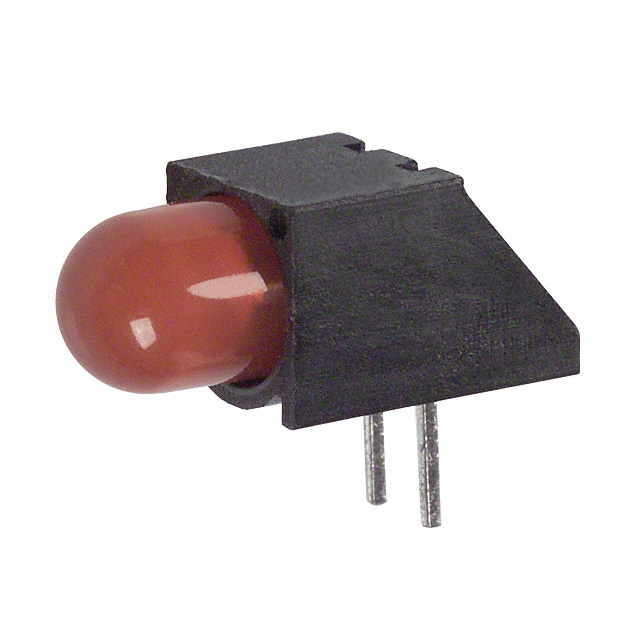

LED Circuit Board Indicator LED Circuit Board Indicator Single Orange Diffused 1.9V 10mA Round with Domed Top 5mm, T-1 3/4 Through Hole, Right Angle
Documents
Technical documentation and resources
