IXXK160N65C4

Active

IXYS

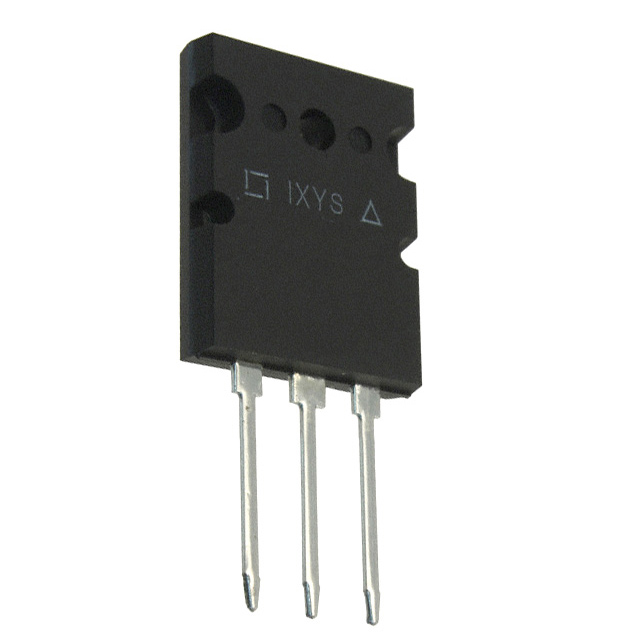

IGBT 650V 290A 940W TO264

Search across all available documentation for this part.

Active

IXYS

IGBT 650V 290A 940W TO264

Technical Specifications

Parameters and characteristics for this part

Specification	IXXK160N65C4

Current - Collector (Ic) (Max)	290 A
Current - Collector Pulsed (Icm)	800 A
Gate Charge	422 nC
IGBT Type	PT
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	TO-264AA, TO-264-3
Power - Max [Max]	940 W
Supplier Device Package	TO-264 (IXXK)
Switching Energy	3.5 mJ, 1.3 mJ
Td (on/off) @ 25°C [custom]	52 ns
Td (on/off) @ 25°C [custom]	197 ns
Test Condition	80 A, 15 V, 1 Ohm, 400 V
Vce(on) (Max) @ Vge, Ic	2.1 V
Voltage - Collector Emitter Breakdown (Max)	650 V

Part	Supplier Device Package	Switching Energy	Package / Case	Vce(on) (Max) @ Vge, Ic	Gate Charge	Test Condition	Voltage - Collector Emitter Breakdown (Max)	Operating Temperature [Min]	Operating Temperature [Max]	IGBT Type	Current - Collector Pulsed (Icm)	Td (on/off) @ 25°C [custom]	Td (on/off) @ 25°C [custom]	Mounting Type	Current - Collector (Ic) (Max)	Power - Max [Max]
IXYS IXXK160N65C4	TO-264 (IXXK)	1.3 mJ 3.5 mJ	TO-264-3 TO-264AA	2.1 V	422 nC	1 Ohm 15 V 80 A 400 V	650 V	-55 °C	175 ░C	PT	800 A	52 ns	197 ns	Through Hole	290 A	940 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	300	$ 17.42

General part information

IGBT PT 650 V 290 A 940 W Through Hole TO-264 (IXXK)
