A2D300-AP02-02
Activeebm-papst Inc.

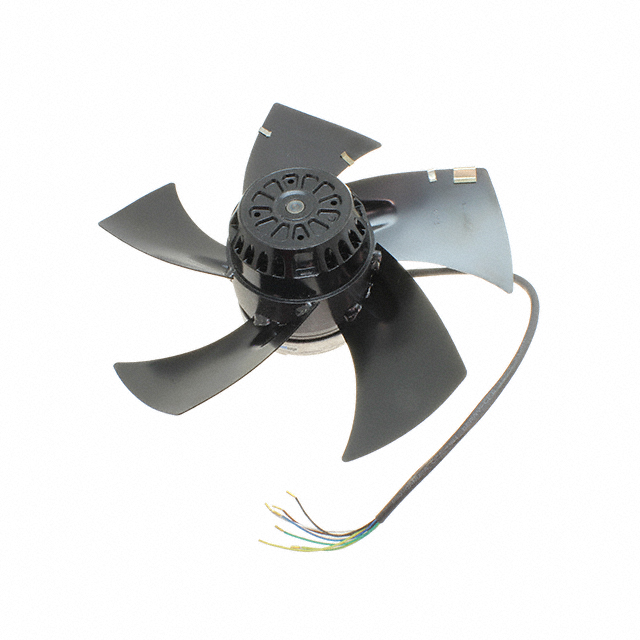

AC FAN AXIAL BALL BEARING 230V/400V
Deep-Dive with AI
Search across all available documentation for this part.
A2D300-AP02-02
Activeebm-papst Inc.
AC FAN AXIAL BALL BEARING 230V/400V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A2D300-AP02-02 |
|---|---|
| Air Flow | 1300 CFM |
| Air Flow | 36.4 m³/min |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.84 A |
| Fan Type | Tubeaxial, 3 Phase |
| Features | Dual Voltage |
| Ingress Protection | IP44 |
| Material - Blade | Steel |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | -25 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 300 W |
| RPM | 2750 RPM |
| Size / Dimension [diameter] | 298 mm |
| Static Pressure | 0.502 in H2O |
| Static Pressure | 125 Pa |
| Voltage - Rated | 230 VAC, 400 VAC |
| Weight | 3.1 kg |
| Weight | 6.8 lbs |
| Width [y] | 68 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
A2D300 Series
Fan Tubeaxial, 3 Phase 230/400VAC Round - 298mm Dia Ball 1300.0 CFM (36.40m³/min)
