OA254LFG111TXC

Active

Orion Fans

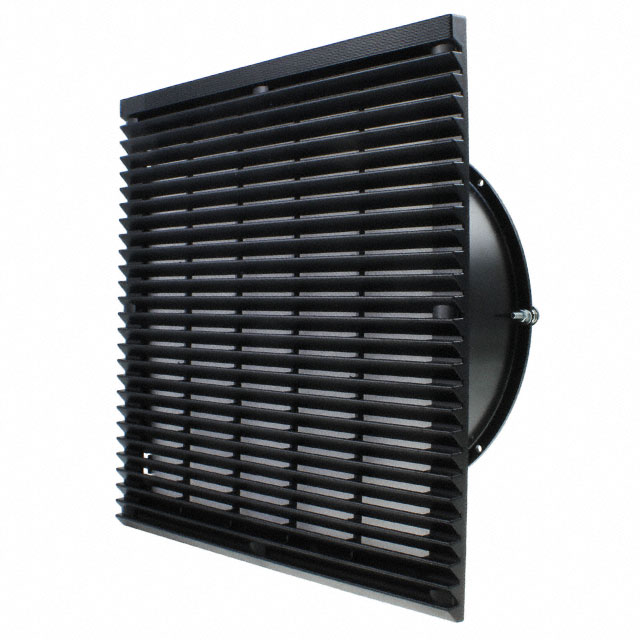

LOUVERED FILTER FAN SLIDE GUARD KIT WITH 254 MM FAN INSTALLED, 115V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsOne Page Summary EN

OA254LFG111TXC

Active

Orion Fans

LOUVERED FILTER FAN SLIDE GUARD KIT WITH 254 MM FAN INSTALLED, 115V

Deep-Dive with AI

DocumentsOne Page Summary EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA254LFG111TXC

Air Flow	23.8 mł/min
Air Flow	850 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Capacitor, Kit
Ingress Protection	IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	69 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	75 W
RPM	2700 RPM
Size / Dimension [x]	320 mm
Size / Dimension [y]	320 mm
Static Pressure	194.3 Pa
Static Pressure	0.78 in H2O
Termination	2 Terminals
Voltage - Rated	115 VAC
Voltage Range [Max]	130 VAC
Voltage Range [Min]	80 VAC
Width [y]	122.5 mm

OA254LF Series

Part	Size / Dimension [x]	Size / Dimension [z]	Noise	Power (Watts)	RPM	Lifetime @ Temp.	Voltage - Rated	Material - Blade	Material - Frame	Bearing Type	Current Rating (Amps)	Features	Air Flow	Air Flow	Fan Type	Width [x]	Approval Agency	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension [y]	Width [y]	Operating Temperature [Max]	Ingress Protection
Orion Fans OA254LFGH111T	322.7 mm	322.7 mm	55 dB	33 W	1650 RPM	60000 Hrs	115 VAC	Polybutylene Terephthalate (PBT)	Aluminum	Ball	0.29 A	Capacitor Kit Thermal Overload Protector (TOP)	15.32 m³/min	547 CFM	Tubeaxial	142.4 mm	cURus TUV	2 Terminals or 2 Wire Leads	-20 °C	70 °C	-20 C	70 °C	0.39 in H2O	97.1 Pa	80 VAC	130 VAC
Orion Fans OA254LFGH221TXC	322.7 mm	322.7 mm	69 dB	75 W	2700 RPM	60000 Hrs	230 VAC	Polybutylene Terephthalate (PBT)	Aluminum	Ball		Capacitor Kit Thermal Overload Protector (TOP)	23.8 mł/min	850 CFM	Tubeaxial	142.4 mm	cURus TUV	2 Terminals or 2 Wire Leads	-20 °C	70 °C	-20 C	70 °C	0.78 in H2O	194.3 Pa	160 VAC	260 VAC
Orion Fans OA254LFG221T	320 mm		55 dB	33 W	1650 RPM	60000 Hrs	230 VAC	Polybutylene Terephthalate (PBT)	Aluminum	Ball	140 mA	Capacitor Kit Thermal Overload Protector (TOP)	15.32 m³/min	547 CFM	Tubeaxial		cURus TUV	2 Terminals	-20 °C		-20 C	80 C	0.39 in H2O	97.1 Pa	160 VAC	260 VAC	320 mm	122.5 mm	80 °C
Orion Fans OA254LFGS221TXC	317 mm		69 dB	75 W	2700 RPM	60000 Hrs	230 VAC	Polybutylene Terephthalate (PBT)	Aluminum	Ball		Capacitor Kit Thermal Overload Protector (TOP)	23.8 mł/min	850 CFM	Tubeaxial	130.5 mm	cURus TUV	2 Terminals or 2 Wire Leads	-20 °C	70 °C	-20 C	70 °C	0.78 in H2O	194.3 Pa	160 VAC	260 VAC	317 mm
Orion Fans OA254LFGS111T	317 mm		55 dB	33 W	1650 RPM	60000 Hrs	115 VAC	Polybutylene Terephthalate (PBT)	Aluminum	Ball	0.29 A	Capacitor Kit Thermal Overload Protector (TOP)	15.32 m³/min	547 CFM	Tubeaxial	130.5 mm	cURus TUV	2 Terminals or 2 Wire Leads	-20 °C	70 °C	-20 C	70 °C	0.39 in H2O	97.1 Pa	80 VAC	130 VAC	317 mm
Orion Fans OA254LFG111TXC	320 mm		69 dB	75 W	2700 RPM	60000 Hrs	115 VAC	Polybutylene Terephthalate (PBT)	Aluminum	Ball		Capacitor Kit	23.8 mł/min	850 CFM	Tubeaxial		cURus TUV	2 Terminals	-40 °C		-40 °C	70 °C	0.78 in H2O	194.3 Pa	80 VAC	130 VAC	320 mm	122.5 mm	70 °C	IP54 - Dust Protected Water Resistant
Orion Fans OA254LFGH111TXC	322.7 mm	322.7 mm	69 dB	75 W	2700 RPM	60000 Hrs	115 VAC	Polybutylene Terephthalate (PBT)	Aluminum	Ball		Capacitor Kit Thermal Overload Protector (TOP)	23.8 mł/min	850 CFM	Tubeaxial	142.4 mm	cURus TUV	2 Terminals or 2 Wire Leads	-20 °C	70 °C	-20 C	70 °C	0.78 in H2O	194.3 Pa	80 VAC	130 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	5	$ 131.51
Newark	Each	1	$ 164.82
		1000	$ 151.09

Description

General part information

OA254LF Series

Fan Tubeaxial 115VAC Square - 320mm L x 320mm H Ball 850.0 CFM (23.80m³/min) 2 Terminals
