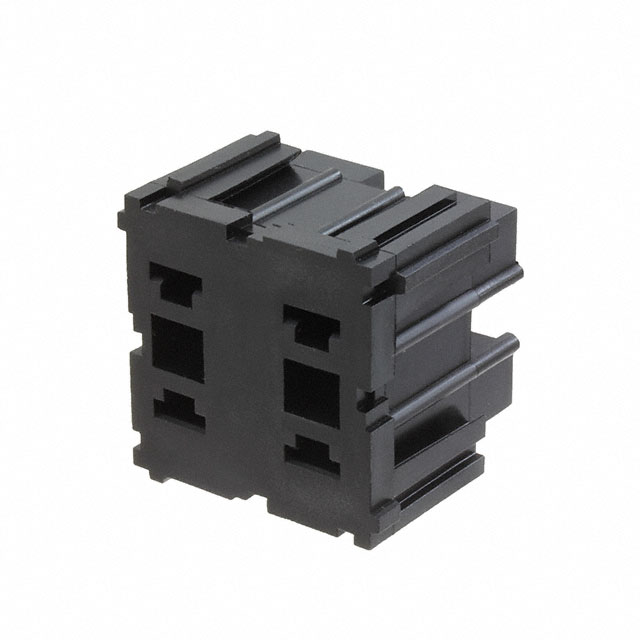

03540549Z

Active

Littelfuse/Commercial Vehicle Products

2-POS. MAXI FUSE MODULE-BULK/ BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet fuse_selection_chart.pdf

03540549Z

Active

Littelfuse/Commercial Vehicle Products

2-POS. MAXI FUSE MODULE-BULK/ BULK

Deep-Dive with AI

DocumentsDatasheet fuse_selection_chart.pdf

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	03540549Z

Current Rating (Amps)	80 A
For Use With/Related Products	Maxi (ATX)
Fuse Size [x]	29.5 mm
Fuse Size [x]	1.161 in
Fuse Size [y]	0.374 in
Fuse Size [y]	9.5 mm
Fuse Type	Blade
Fuseholder Type	Block
Number of Circuits	2

03540549Z Series

2-POS. MAXI FUSE MODULE-BULK

Part	Fuseholder Type	Fuse Size [y]	Fuse Size [x]	Fuse Size [x]	Fuse Size [y]	Fuse Type	Number of Circuits	Current Rating (Amps)	For Use With/Related Products
Littelfuse/Commercial Vehicle Products 03540549Z	Block	0.374 in	29.5 mm	1.161 in	9.5 mm	Blade	2	80 A	Maxi (ATX)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.18
		5	$ 12.71
		40	$ 9.41
		80	$ 8.00
		280	$ 7.53
		520	$ 6.59
		1000	$ 6.35
Newark	Each	25	$ 8.44
		50	$ 7.83
		100	$ 6.90
		250	$ 6.57
		500	$ 6.11

Description

General part information

03540549Z Series

The Littelfuse POWR-BLOKS™ system gives you unlimited flexibility to design electrical distribution systems. It’s a totally modular way to build your own junction box. POWR-BLOKS are perfect for applications where space or vehicle function demand a tailor made approach. The Littelfuse POWR-BLOKS can be modified, re-sized, reconfigured or added to at any time.
