US2DA
ActiveON Semiconductor
1.5A 200V HIGH EFFICIENCY RECTIFIER TRR=50NS IN SMA
Deep-Dive with AI
Search across all available documentation for this part.
US2DA
ActiveON Semiconductor
1.5A 200V HIGH EFFICIENCY RECTIFIER TRR=50NS IN SMA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | US2DA |
|---|---|
| Capacitance @ Vr, F | 50 pF |
| Current - Average Rectified (Io) | 1.5 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |

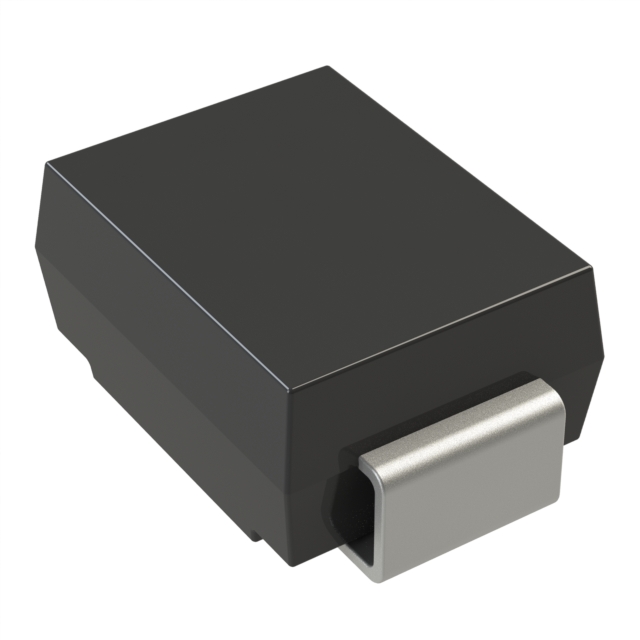

| Package / Case | DO-214AC, SMA |
| Qualification | AEC-Q101 |
| Reverse Recovery Time (trr) | 50 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | DO-214AC (SMA) |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.55 | |
| 10 | $ 0.34 | |||
| 100 | $ 0.21 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.14 | |||
| 2000 | $ 0.13 | |||
| Digi-Reel® | 1 | $ 0.55 | ||
| 10 | $ 0.34 | |||
| 100 | $ 0.21 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.14 | |||
| 2000 | $ 0.13 | |||
| Tape & Reel (TR) | 7500 | $ 0.09 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.47 | |
| 10 | $ 0.19 | |||
| 25 | $ 0.19 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.17 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| ON Semiconductor | N/A | 1 | $ 0.09 | |
Description
General part information
US2DA Series
Super Fast Surface Mount Rectifiers
