858-10-006-30-602000

Active

Mill-Max Manufacturing Corp.

STANDARD PIN HEADER

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

STANDARD PIN HEADER

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Contact Finish	Mounting Type	Material	Pitch [x]	Pitch [x]	Number of Contacts [custom]	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Number of Contacts
Mill-Max Manufacturing Corp. 858-10-006-10-012000	1	Gold	Through Hole	Brass Alloy	4 mm	0.157 in	6	10 Áin	0.25 Ám	Mating Target
Mill-Max Manufacturing Corp. 858-10-005-10-012000	1	Gold	Through Hole	Brass Alloy	4 mm	0.157 in		10 Áin	0.25 Ám	Mating Target	5
Mill-Max Manufacturing Corp. 858-10-002-30-611000	1	Gold	Surface Mount	Brass Alloy	4 mm	0.157 in		10 Áin	0.25 Ám	Mating Target
Mill-Max Manufacturing Corp. 858-10-002-10-012000	1	Gold	Through Hole	Brass Alloy	4 mm	0.157 in		10 Áin	0.25 Ám	Mating Target
Mill-Max Manufacturing Corp. 858-10-006-30-612000	1	Gold	Surface Mount	Brass Alloy	4 mm	0.157 in	6	10 Áin	0.25 Ám	Mating Target
Mill-Max Manufacturing Corp. 858-10-004-30-012000	1	Gold	Surface Mount	Brass Alloy	4 mm	0.157 in	4	10 Áin	0.25 Ám	Mating Target
Mill-Max Manufacturing Corp. 858-10-006-30-602000	1	Gold	Surface Mount	Brass Alloy	4 mm	0.157 in	6	10 Áin	0.25 Ám	Mating Target
Mill-Max Manufacturing Corp. 858-10-005-10-001000	1	Gold	Through Hole	Brass Alloy	4 mm	0.157 in		10 Áin	0.25 Ám	Mating Target	5
Mill-Max Manufacturing Corp. 858-10-004-10-012000	1	Gold	Through Hole	Brass Alloy	4 mm	0.157 in	4	10 Áin	0.25 Ám	Mating Target
Mill-Max Manufacturing Corp. 858-10-005-30-012000	1	Gold	Surface Mount	Brass Alloy	4 mm	0.157 in		10 Áin	0.25 Ám	Mating Target	5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

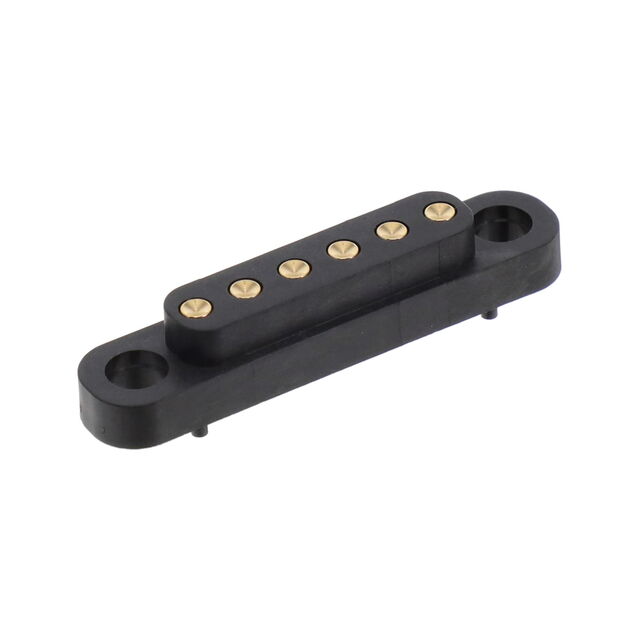

6 Position Spring Mating Target Connector Surface Mount
