OSTTC021162

Active

On Shore Technology Inc.

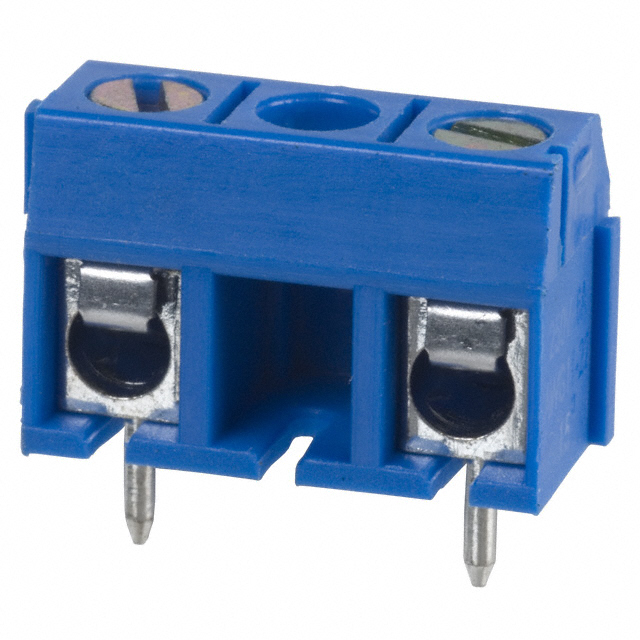

TERM BLK 2P SIDE ENTRY 10MM PCB

Search across all available documentation for this part.

Active

On Shore Technology Inc.

TERM BLK 2P SIDE ENTRY 10MM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	OSTTC021162

Clamp Material - Plating	Stainless, Steel
Contact Material - Plating [custom]	Brass
Current	16 A
Features	Interlocking (Side)
Housing Material	Polyamide (PA), Nylon
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-33 °C
Pitch [x]	0.394 in
Pitch [x]	10 mm
Positions Per Level	2
Screw Material - Plating	Steel, Galvanized - Chromate Plated
Screw Thread	M2.6
Torque - Screw	0.4 Nm
Torque - Screw	3.5 Lb-In
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG
Wire Termination	Screw - Leaf Spring, Wire Guard

Part	Wire Gauge [Min]	Wire Gauge [Max]	Torque - Screw	Torque - Screw	Operating Temperature [Min]	Operating Temperature [Max]	Current	Housing Material	Mounting Type	Screw Material - Plating	Color	Voltage	Screw Thread	Number of Levels	Features	Clamp Material - Plating	Contact Material - Plating [custom]	Positions Per Level	Wire Termination	Mating Orientation	Pitch [x]	Pitch [x]	Contact Material - Plating [custom]
On Shore Technology Inc. OSTTC022162	14 AWG	22 AWG	0.3 Nm	2.6 Lb-In	-30 ░C	105 ░C	15 A	Thermoplastic	Through Hole	Steel Zinc Plated	Blue	300 V	M2.6	1	Interlocking (Side)	Stainless Steel	Tin Plated	2	Screw - Leaf Spring Wire Guard	Horizontal with Board	0.2 in	5.08 mm
On Shore Technology Inc. OSTTC021162	14 AWG	22 AWG	0.4 Nm	3.5 Lb-In	-33 °C	120 °C	16 A	Polyamide (PA) Nylon	Through Hole	Steel Galvanized - Chromate Plated			M2.6	1	Interlocking (Side)	Stainless Steel		2	Screw - Leaf Spring Wire Guard	Horizontal with Board	0.394 in	10 mm	Brass
On Shore Technology Inc. OSTTC020162	14 AWG	22 AWG	0.3 Nm	2.6 Lb-In	-30 ░C	105 ░C	15 A	Thermoplastic	Through Hole	Steel Zinc Plated	Blue	300 V	M2.6	1	Interlocking (Side)	Stainless Steel	Tin Plated	2	Screw - Leaf Spring Wire Guard	Horizontal with Board	0.197 in	5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 0.38

General part information

2 Position Wire to Board Terminal Block Horizontal with Board 0.394" (10.00mm) Through Hole
