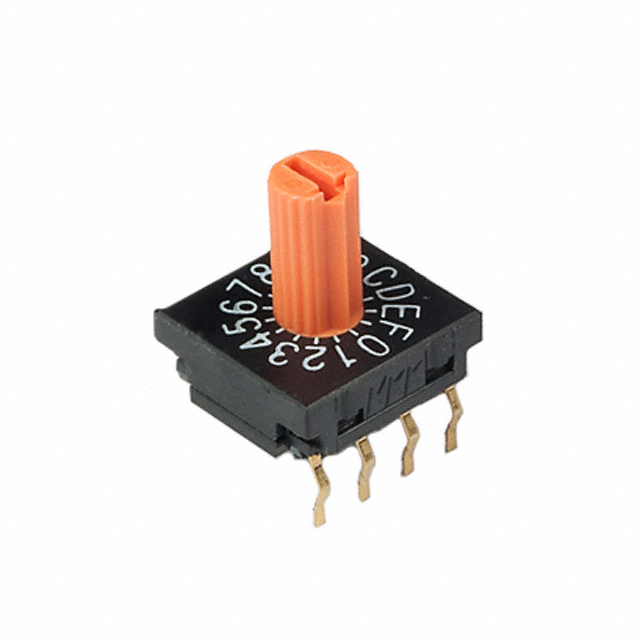

FR01KR16P-W-S

Active

NKK Switches

SWITCH ROTARY DIP HEX 0.1A 5V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH ROTARY DIP HEX 0.1A 5V

Technical Specifications

Parameters and characteristics for this part

Specification	FR01KR16P-W-S

Actuator Level	Raised
Actuator Type	Rotary with Shaft
Body Material	Polyamide (PA), Nylon, Glass Filled
Circuit	Hexadecimal
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	100 mA
Electrical Life	10000 Cycles
Height Above Board [z]	0.426 in
Height Above Board [z]	10.82 mm
Length	10 mm
Length	0.394 in
Mechanical Life	10000 Steps
Mounting Type	Through Hole
Number of Positions	16
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	5 V
Washable	True

Part	Electrical Life	Voltage Rating	Actuator Type	Pitch [x]	Pitch	Pitch [x]	Current Rating (Amps)	Mechanical Life	Number of Positions	Body Material	Circuit	Height Above Board [z]	Height Above Board [z]	Mounting Type	Contact Material	Length	Length	Actuator Level	Termination Style	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]
NKK Switches FR01KR16P-S	10000 Cycles	5 V	Rotary with Shaft	0.1 in	Full	2.54 mm	100 mA	10000 Steps	16	Polyamide (PA) Nylon Glass Filled	Hexadecimal	0.426 in	10.82 mm	Through Hole	Copper Alloy	10 mm	0.394 in	Raised	PC Pin	Gold	-25 °C	85 °C
NKK Switches FR01KR16H-06XL	10000 Cycles	5 V	Rotary with Shaft	0.1 in	Full	2.54 mm	100 mA	10000 Steps	16	Polyamide (PA) Nylon Glass Filled	Hexadecimal	0.394 in	10 mm	Through Hole Right Angle	Copper Alloy	10 mm	0.394 in	Raised	PC Pin	Gold	-25 °C	85 °C
NKK Switches FR01KR16H-S	10000 Cycles	5 V	Rotary with Shaft	0.1 in	Full	2.54 mm	100 mA	10000 Steps	16	Polyamide (PA) Nylon Glass Filled	Hexadecimal	0.394 in	10 mm	Through Hole Right Angle	Copper Alloy	10 mm	0.394 in	Raised	PC Pin	Gold	-25 °C	85 °C
NKK Switches FR01KR16P	10000 Cycles	5 V	Rotary with Shaft	0.1 in	Full	2.54 mm	100 mA	10000 Steps	16	Polyamide (PA) Nylon Glass Filled	Hexadecimal	0.426 in	10.82 mm	Through Hole	Copper Alloy	10 mm	0.394 in	Raised	PC Pin	Gold	-25 °C	85 °C
NKK Switches FR01KR16P-W-S	10000 Cycles	5 V	Rotary with Shaft	0.1 in	Full	2.54 mm	100 mA	10000 Steps	16	Polyamide (PA) Nylon Glass Filled	Hexadecimal	0.426 in	10.82 mm	Through Hole	Copper Alloy	10 mm	0.394 in	Raised	PC Pin	Gold	-25 °C	85 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch Hexadecimal 16 Position Through Hole Rotary with Shaft Actuator 100mA 5VDC
