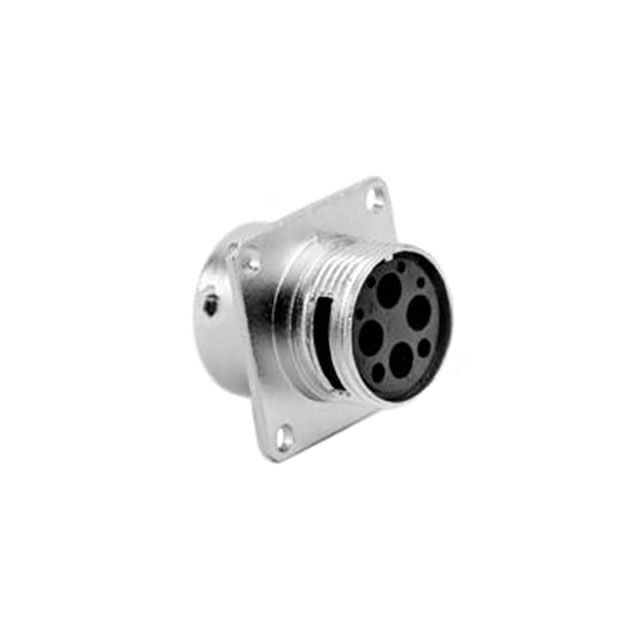

RT00144SNH

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG FMALE 4POS PNL MT

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT HSNG FMALE 4POS PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	RT00144SNH

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	2.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert [Max]	14
Shell Size - Insert [Min]	4
Shielding	Shielded
Type	For Female Sockets

Part	Housing Color	Type	Contact Type	Insert Material	Shielding	Ingress Protection	Shell Material	Number of Positions	Contact Shape	Mounting Feature	Note	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Orientation	Fastening Type	Connector Type	Shell Finish	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Size
Amphenol Sine Systems Corp RT00144SNH	Silver	For Female Sockets	Crimp	Thermoplastic	Shielded	IP67 - Dust Tight Waterproof	Zinc Alloy	4	Circular	Flange	Contacts Not Included	4	14	N	Bayonet Lock	Receptacle Housing	Nickel	UL94 V-0	-40 °C	105 ░C	2.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle Housing Panel Mount
