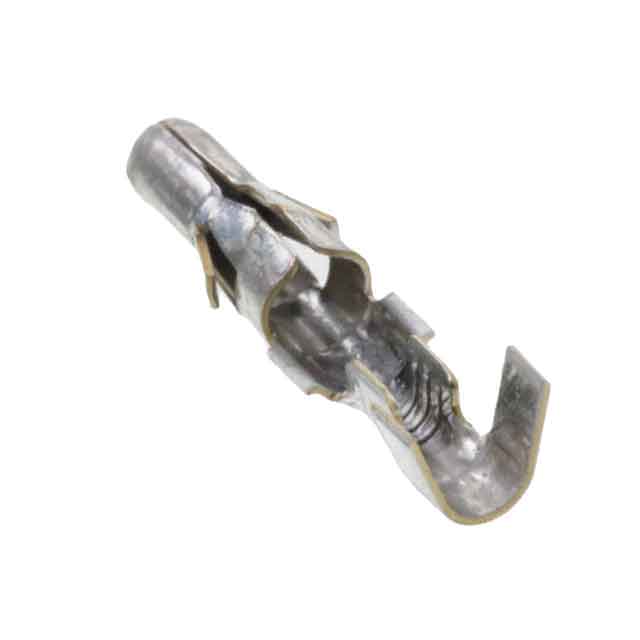

0018122222

Obsolete

Molex

CONN PIN 16-18AWG CRIMP TIN

Search across all available documentation for this part.

Obsolete

Molex

CONN PIN 16-18AWG CRIMP TIN

Technical Specifications

Parameters and characteristics for this part

Part	Pin or Socket	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Wire Gauge [Min]	Wire Gauge [Max]	Contact Termination
Molex 0018121221	Socket	0.51 µm	20 µin	Tin	16 AWG	18 AWG	Crimp
Molex 0018121602	Socket	0.51 µm	20 µin	Tin	10 AWG	14 AWG	Crimp
Molex 0018121601	Socket	0.51 µm	20 µin	Tin	10 AWG	14 AWG	Crimp
Molex 0018122601	Pin	0.51 µm	20 µin	Tin	10 AWG	14 AWG	Crimp
Molex 0018122222	Pin	0.51 µm	20 µin	Tin	16 AWG	18 AWG	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pin Contact Tin 16-18 AWG Crimp

Technical documentation and resources

No documents available
