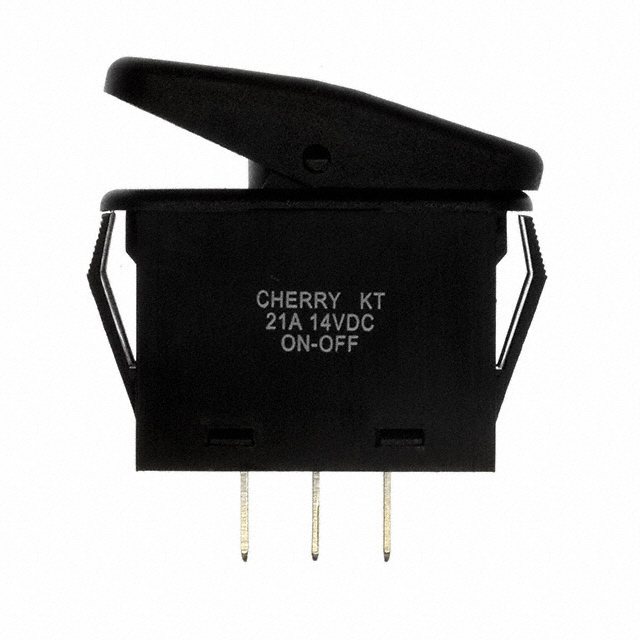

KTG2AMB2BBBRN1

Active

ZF Electronics

SWITCH ROCKER SPST 20A 125V

Search across all available documentation for this part.

Active

ZF Electronics

SWITCH ROCKER SPST 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	KTG2AMB2BBBRN1

Actuator Marking	No Marking
Actuator Type	Convex (Reverse V) - Illuminated
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	21 A, 20 A
Electrical Life	6000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	14 VDC
Ingress Protection	IP56 - Dust Protected, Water Resistant
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	36.8 mm
Panel Cutout Dimensions [y]	15.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	14 V

Part	Electrical Life	Color - Actuator/Cap	Mounting Type	Switch Function	Termination Style	Voltage Rating - AC	Illumination Type, Color	Illumination Voltage (Nominal)	Actuator Type	Circuit	Actuator Marking	Ingress Protection	Mechanical Life	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC
ZF Electronics KTG2AMB2BBBRN1	6000 Cycles	Black	Panel Mount Snap-In	On-Off	Quick Connect - 0.250" (6.3mm)	125 V	LED Red	14 VDC	Convex (Reverse V) - Illuminated	SPST	No Marking	IP56 - Dust Protected Water Resistant	100000 Cycles	15.2 mm	36.8 mm	20 A 21 A	85 °C	-20 C	14 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 4.42

General part information

Rocker Switch SPST 20A (AC), 21A (DC) 125 V Panel Mount, Snap-In
