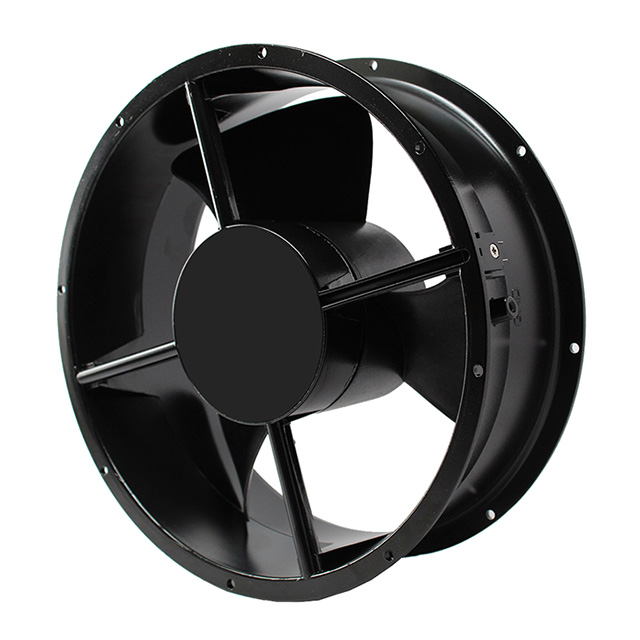

OA254EC-22-1TBXCIP68A

Obsolete

Orion Fans

AC AXIAL FAN, 230V, CIRCULAR, 254 MM, 89 MM, BALL BEARING, 830 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

OA254EC-22-1TBXCIP68A

Obsolete

Orion Fans

AC AXIAL FAN, 230V, CIRCULAR, 254 MM, 89 MM, BALL BEARING, 830 CFM

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA254EC-22-1TBXCIP68A

Air Flow	830 CFM
Air Flow	23.24 m³/min
Approval Agency	TUV, CE, cURus, UR
Bearing Type	Ball
Current Rating (Amps)	0.64 A
Fan Type	Tubeaxial
Features	Electronic Commutation (EC)
Ingress Protection	IP68 - Dust Tight, Waterproof
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	72 W
RPM	2750 RPM
Size / Dimension	Round
Size / Dimension [diameter]	10 in
Static Pressure	298.9 Pa
Static Pressure	1.2 in H2O
Termination	2 Terminals
Voltage - Rated	230 VAC
Weight	2.1 kg
Weight	4.6 lbs
Width [y]	89 mm

OA254EC Series

Part	Static Pressure	Static Pressure	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension	Voltage - Rated	Weight	Weight	Material - Frame	Width [y]	Approval Agency	Power (Watts)	Ingress Protection	Lifetime @ Temp.	Bearing Type	Air Flow	Air Flow	Features	RPM	Termination	Current Rating (Amps)	Material - Blade	Fan Type	Voltage - Rated [Max]	Voltage - Rated [Min]	Noise
Orion Fans OA254EC-22-1WBXCIP68A	298.9 Pa	1.2 in H2O	-20 °C	70 °C	-20 C	70 °C	10 in	Round	230 VAC	2.1 kg	4.6 lbs	Aluminum	89 mm	ATEX CE cURus TUV UR	72 W	IP68 - Dust Tight Waterproof	60000 Hrs	Ball	830 CFM	23.24 m³/min	Electronic Commutation (EC)	2750 RPM	2 Wire Leads	0.64 A	Polybutylene Terephthalate (PBT)	Tubeaxial
Orion Fans OA254EC-11-1TBXCIP68A	298.9 Pa	1.2 in H2O	-20 °C	70 °C	-20 C	70 °C	10 in	Round	115 VAC	2.1 kg	4.6 lbs	Aluminum	89 mm	CE cURus TUV UR	75 W	IP68 - Dust Tight Waterproof	60000 Hrs	Ball	830 CFM	23.24 m³/min	Electronic Commutation (EC)	2750 RPM	2 Terminals	1.05 A	Polybutylene Terephthalate (PBT)	Tubeaxial
Orion Fans OA254EC-UR-1TB	119.6 Pa	0.48 in H2O	-20 °C	70 °C	-20 C	70 °C	10 in	Round		2.1 kg	4.6 lbs	Aluminum	89 mm	CE cURus TUV UR	22 W		60000 Hrs	Ball	500 CFM	14 mł/min	Electronic Commutation (EC)	1700 RPM	2 Terminals	0.21 A	Polybutylene Terephthalate (PBT)	Tubeaxial	264 VAC	95 VAC	56 dB
Orion Fans OA254EC-11-1WBXCIP68A	298.9 Pa	1.2 in H2O	-20 °C	70 °C	-20 C	70 °C	10 in	Round	115 VAC	2.1 kg	4.6 lbs	Aluminum	89 mm	ATEX CE cURus TUV UR	75 W	IP68 - Dust Tight Waterproof	60000 Hrs	Ball	830 CFM	23.24 m³/min	Electronic Commutation (EC)	2750 RPM	2 Wire Leads	1.05 A	Polybutylene Terephthalate (PBT)	Tubeaxial
Orion Fans OA254EC-22-1WBXC	298.9 Pa	1.2 in H2O	-20 °C	70 °C	-20 C	70 °C	10 in	Round	230 VAC	2.1 kg	4.6 lbs	Aluminum	89 mm	CE cURus TUV UR	72 W		60000 Hrs	Ball	830 CFM	23.24 m³/min	Electronic Commutation (EC)	2750 RPM	2 Wire Leads	0.64 A	Polybutylene Terephthalate (PBT)	Tubeaxial
Orion Fans OA254EC-22-1TBXCIP68A	298.9 Pa	1.2 in H2O	-20 °C	70 °C	-20 C	70 °C	10 in	Round	230 VAC	2.1 kg	4.6 lbs	Aluminum	89 mm	CE cURus TUV UR	72 W	IP68 - Dust Tight Waterproof	60000 Hrs	Ball	830 CFM	23.24 m³/min	Electronic Commutation (EC)	2750 RPM	2 Terminals	0.64 A	Polybutylene Terephthalate (PBT)	Tubeaxial
Orion Fans OA254EC-UR-1WB	119.6 Pa	0.48 in H2O	-20 °C	70 °C	-20 C	70 °C	10 in	Round		2.1 kg	4.6 lbs	Aluminum	89 mm	CE cURus TUV UR	22 W		60000 Hrs	Ball	500 CFM	14 mł/min	Electronic Commutation (EC)	1700 RPM	2 Wire Leads	0.21 A	Polybutylene Terephthalate (PBT)	Tubeaxial	264 VAC	95 VAC	56 dB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 234.58
Newark	Each	1	$ 182.70
		1000	$ 167.48

Description

General part information

OA254EC Series

Fan Tubeaxial 230VAC Round - 254mm Dia Ball 830.0 CFM (23.24m³/min) 2 Terminals

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
