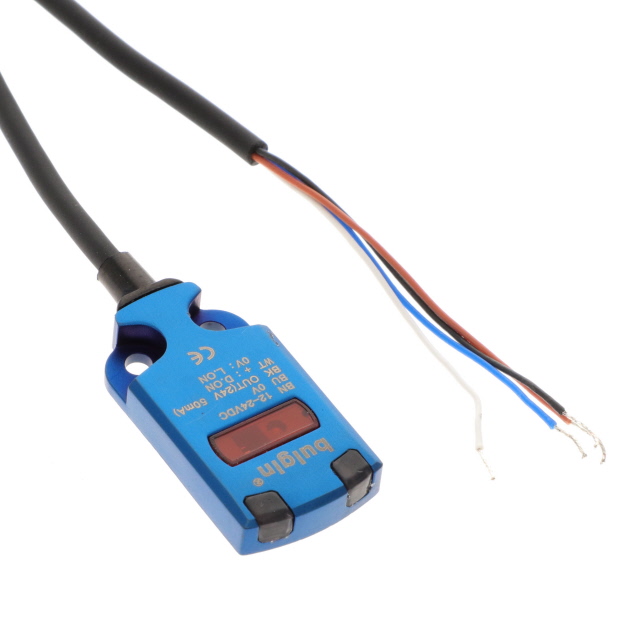

SLLP3002CL

Active

BULGIN LIMITED

SENSOR REFLECT IP67 40MM NPN

Search across all available documentation for this part.

Active

BULGIN LIMITED

SENSOR REFLECT IP67 40MM NPN

Technical Specifications

Parameters and characteristics for this part

Specification	SLLP3002CL

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	IP67
Light Source	Red LED
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Output Configuration	NPN - Light-ON
Response Time	500 µs
Sensing Distance [Max]	30 mm
Sensing Distance [Max]	1.181 in
Sensing Distance [Min]	0.079 "
Sensing Distance [Min]	2 mm
Sensing Method	Reflective, Diffuse
Voltage - Supply [Max]	24 V
Voltage - Supply [Min]	12 V

Part	Light Source	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Distance [Min]	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Sensing Method	Ingress Protection	Connection Method	Response Time	Output Configuration	Cable Length	Cable Length
BULGIN LIMITED SLLP3002CL	Red LED	12 V	24 V	0.079 "	30 mm	1.181 in	2 mm	-10 °C	50 °C	Diffuse Reflective	IP67	Cable	500 µs	NPN - Light-ON	78.74 in	2 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Reflective, Diffuse Optical Sensor 0.079" ~ 1.181" (2mm ~ 30mm) NPN - Light-ON
