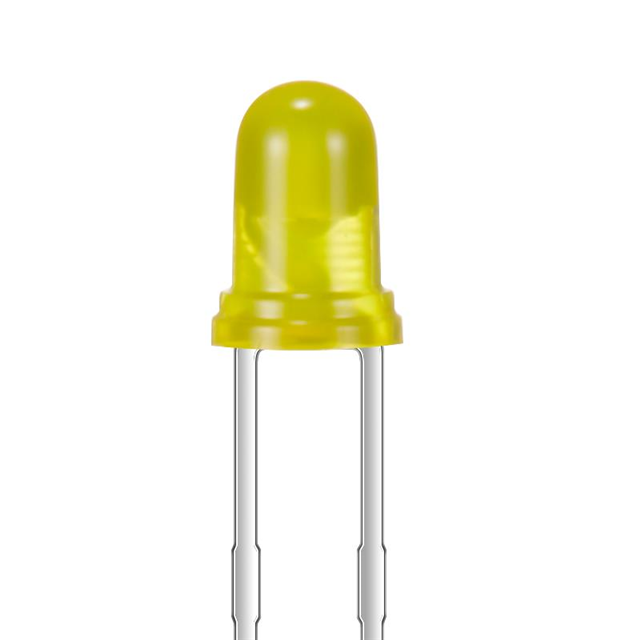

XLMYK65D
ActiveSunLED
LED YELLOW DIFFUSED T-1 T/H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XLMYK65D
ActiveSunLED
LED YELLOW DIFFUSED T-1 T/H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XLMYK65D |
|---|---|
| Color | Yellow |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 6.45 mm |
| Lens Color | Yellow |
| Lens Size | 3 mm |
| Lens Size | T-1 |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 497 mcd |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension [diameter] | 3 mm |
| Supplier Device Package | T-1 (3mm) |
| Viewing Angle | 60 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 590 nm |
| Wavelength - Peak | 590 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.37 | |
| 10 | $ 0.29 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.10 | |||
| 5000 | $ 0.08 | |||
| 10000 | $ 0.07 | |||
Description
General part information
XLMYK65 Series
Yellow 590nm LED Indication - Discrete 2V Radial
