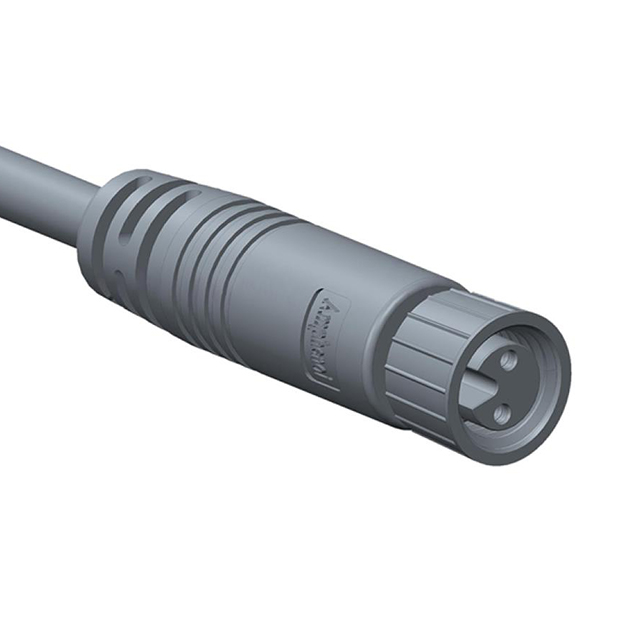

8A-03AFFM-SL7A01

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, GUIDED M8, METAL, 3A, 03 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT, SCREW THREAD, OVERMOLDED,

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, GUIDED M8, METAL, 3A, 03 PINS, FEMALE CONNECTOR, FEMALE CONTACT, STRAIGHT, SCREW THREAD, OVERMOLDED,

Technical Specifications

Parameters and characteristics for this part

Specification	8A-03AFFM-SL7A01

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	3
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M8
1st Connector Type	Receptacle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

Part	Assembly Configuration	Usage	Ingress Protection	1st Connector Shell Size - Insert	2nd Connector Type	Cable Material	1st Connector Type	1st Connector Number of Positions Loaded	1st Connector Mounting Type	Cable Type	1st Connector Orientation [custom]	Length [x]	Length [x]	Color	Shielding	1st Connector Gender	1st Connector Number of Positions
Amphenol LTW 8A-03AFFM-SL7A05	Standard	Industrial Environments	IP67 - Dust Tight Waterproof	M8	Wire Leads	Polyvinyl Chloride (PVC)	Receptacle	All	Free Hanging (In-Line)	Round	Keyed	1.64 ft	500 mm	Black	Unshielded	Female Sockets	3
Amphenol LTW 8A-03AFFM-SR7A02	Standard	Industrial Environments	IP67 - Dust Tight Waterproof	M8	Wire Leads	Polyvinyl Chloride (PVC)	Receptacle Right Angle	All	Free Hanging (In-Line)	Round	Keyed	6.56 ft	2 m	Black	Unshielded	Female Sockets	3
Amphenol LTW 8A-03AFFM-SL7A03	Standard	Industrial Environments	IP67 - Dust Tight Waterproof	M8	Wire Leads	Polyvinyl Chloride (PVC)	Receptacle	All	Free Hanging (In-Line)	Round	Keyed	9.84 ft	3 m	Black	Unshielded	Female Sockets	3
Amphenol LTW 8A-03AFFM-SL7A01	Standard	Industrial Environments	IP67 - Dust Tight Waterproof	M8	Wire Leads	Polyvinyl Chloride (PVC)	Receptacle	All	Free Hanging (In-Line)	Round	Keyed	3.28 ft	1 m	Black	Unshielded	Female Sockets	3
Amphenol LTW 8A-03AFFM-SL7A10	Standard	Industrial Environments	IP67 - Dust Tight Waterproof	M8	Wire Leads	Polyvinyl Chloride (PVC)	Receptacle	All	Free Hanging (In-Line)	Round	Keyed			Black	Unshielded	Female Sockets	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 3.28' (1.00m)
