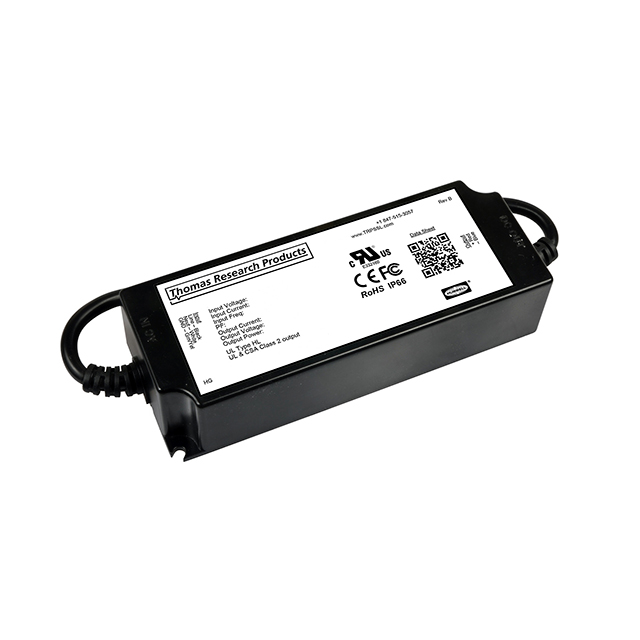

LED96W-092-C1050-LT
ActiveThomas Research Products
LED DRIVER CC AC/DC 54-92V 1.05A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsLED Driver, Accessory Catalog
LED96W-092-C1050-LT
ActiveThomas Research Products
LED DRIVER CC AC/DC 54-92V 1.05A
Deep-Dive with AI
DocumentsLED Driver, Accessory Catalog
Technical Specifications
Parameters and characteristics for this part
| Specification | LED96W-092-C1050-LT |
|---|---|
| Approval Agency | CE, cURus |
| Current - Output (Max) [Max] | 1.05 A |
| Dimming | ELV, TRIAC |
| Efficiency | 92 % |
| Features | SCP, OCP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 96 W |
| Ratings | NEMA 4, IP66 |
| Size / Dimension [x] | 161 mm |
| Size / Dimension [x] | 6.34 " |
| Size / Dimension [y] | 2.4 " |
| Size / Dimension [y] | 61 mm |
| Size / Dimension [z] | 1.5 " |
| Size / Dimension [z] | 38 mm |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 100 VAC |
| Voltage - Output [Max] | 92 V |
| Voltage - Output [Min] | 54 V |
| Weight | 311.62 g |
| Weight | 0.687 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 500 | $ 89.73 | |
Description
General part information
LED96W Series
1.05A 54 ~ 92V Constant Current LED Driver AC DC Converter Topology 1 Output
