0067-2-17-15-30-27-02-0

Active

Mill-Max Manufacturing Corp.

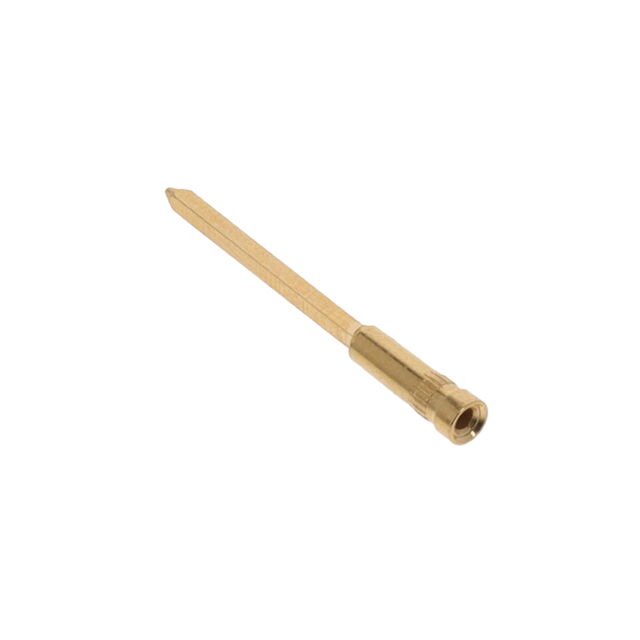

CONN PIN RCPT .015-.025 PRESSFIT

Deep-Dive with AI

Search across all available documentation for this part.

0067-2-17-15-30-27-02-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT .015-.025 PRESSFIT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0067-2-17-15-30-27-02-0

Accepts Pin Diameter [Max]	0.025 "
Accepts Pin Diameter [Max]	0.64 mm
Accepts Pin Diameter [Min]	0.015 "
Accepts Pin Diameter [Min]	0.38 mm
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Beryllium Copper
Flange Diameter [diameter]	0.062 in
Flange Diameter [diameter]	1.57 mm
Length - Overall [x]	14.22 mm
Length - Overall [x]	0.56 in
Mounting Hole Diameter [diameter]	0.057 "
Mounting Hole Diameter [diameter]	1.45 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Socket Depth	0.162 in
Socket Depth	4.12 mm
Tail Diameter	0.64 mm
Tail Diameter	0.025 in
Tail Type	Wire Wrap
Termination	Press-Fit

0067-2 Series

Part	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Tail Diameter	Tail Diameter	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Min]	Length - Overall [x]	Length - Overall [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Termination	Tail Type	Contact Finish	Socket Depth	Socket Depth	Contact Material
Mill-Max Manufacturing Corp. 0067-2-17-80-30-27-02-0	0.062 in	1.57 mm	0.057 "	1.45 mm	0.64 mm	0.025 in	0.025 "	0.64 mm	0.015 "	0.38 mm	14.22 mm	0.56 in	-55 °C	125 °C	0.76 Ám	30 Áin	Press-Fit	Wire Wrap	Gold	0.162 in	4.12 mm	Beryllium Copper
Mill-Max Manufacturing Corp. 0067-2-17-80-30-84-02-0	0.062 in	1.57 mm	0.057 "	1.45 mm	0.64 mm	0.025 in	0.025 "	0.64 mm	0.015 "	0.38 mm	14.22 mm	0.56 in	-55 °C	125 °C	2.54 µm	100 µin	Press-Fit	Wire Wrap	Tin	0.162 in	4.12 mm	Beryllium Copper
Mill-Max Manufacturing Corp. 0067-2-17-80-30-14-02-0	0.062 in	1.57 mm	0.057 "	1.45 mm	0.64 mm	0.025 in	0.025 "	0.64 mm	0.015 "	0.38 mm	14.22 mm	0.56 in	-55 °C	125 °C	0.25 Ám	10 Áin	Press-Fit	Wire Wrap	Gold	0.162 in	4.12 mm	Beryllium Copper
Mill-Max Manufacturing Corp. 0067-2-17-15-30-27-02-0	0.062 in	1.57 mm	0.057 "	1.45 mm	0.64 mm	0.025 in	0.025 "	0.64 mm	0.015 "	0.38 mm	14.22 mm	0.56 in	-55 °C	125 °C	0.76 Ám	30 Áin	Press-Fit	Wire Wrap	Gold	0.162 in	4.12 mm	Beryllium Copper
Mill-Max Manufacturing Corp. 0067-2-17-15-30-14-02-0	0.062 in	1.57 mm	0.057 "	1.45 mm	0.64 mm	0.025 in	0.025 "	0.64 mm	0.015 "	0.38 mm	14.22 mm	0.56 in	-55 °C	125 °C	0.25 Ám	10 Áin	Press-Fit	Wire Wrap	Gold	0.162 in	4.12 mm	Beryllium Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.51
		10	$ 1.32
		25	$ 1.26
		50	$ 1.23
		100	$ 1.18
		250	$ 1.06
		500	$ 0.98
		1000	$ 0.84
		3000	$ 0.78

Description

General part information

0067-2 Series

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) Wire Wrap Press-Fit

Documents

Technical documentation and resources

No documents available
