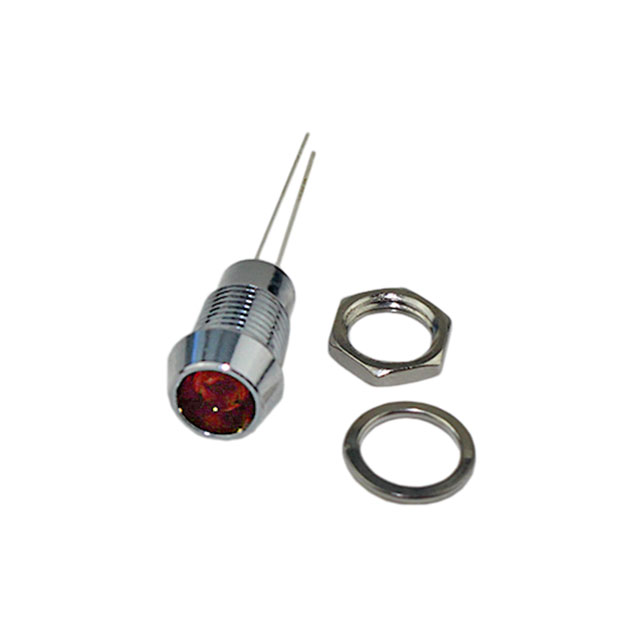

L65DR24L
ActiveVisual Communications Company - VCC
LED 5MM RED DIFFUSED PANELMT
Deep-Dive with AI
Search across all available documentation for this part.
L65DR24L
ActiveVisual Communications Company - VCC
LED 5MM RED DIFFUSED PANELMT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L65DR24L |
|---|---|
| Lamp Color | Red |
| Lens Color | Red |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 10 mcd |
| Panel Cutout Dimensions | 8 mm |
| Panel Cutout Dimensions | 0.315 in |
| Panel Cutout Shape | Round |
| Ratings | DC |
| Termination Style | PC Pin |
| Type | LED |
| Viewing Angle | 30 ° |
| Voltage | 24 V |
| Wavelength - Peak | 700 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.54 | |
| 10 | $ 2.50 | |||
| 100 | $ 2.05 | |||
| 500 | $ 1.73 | |||
| 1000 | $ 1.59 | |||
| 2000 | $ 1.52 | |||
| 5000 | $ 1.49 | |||
Description
General part information
L65DR24 Series
LED Panel Indicator Red Diffused 30° 24V 20mA PC Pin
Documents
Technical documentation and resources
No documents available
