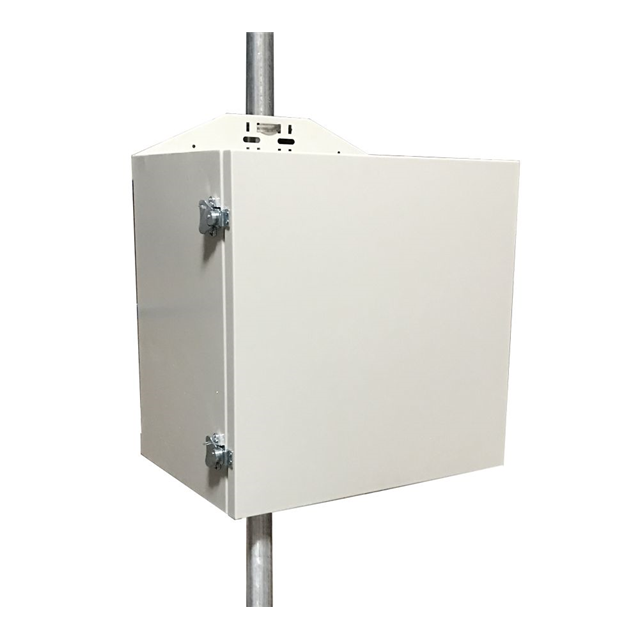

UPSTL12/24-100-600

Obsolete

Tycon Systems Inc.

UPSPRO 600W 1200VA, 12/24VDC 20A

Search across all available documentation for this part.

Obsolete

Tycon Systems Inc.

UPSPRO 600W 1200VA, 12/24VDC 20A

Technical Specifications

Parameters and characteristics for this part

Specification	UPSTL12/24-100-600

Applications	Industrial Control, General Purpose
Approval Agency	UL, CE
Form	Chassis Mount
Height [z]	17.543 in
Height [z]	445.6 mm
Power - Rated	600 W
Size / Dimension [x]	24.114 in
Size / Dimension [x]	612.5 mm
Size / Dimension [y]	612.5 mm
Size / Dimension [y]	24.114 in
Type	Standby (No Regulation)
Voltage - Input	120 VAC, 240 VAC
Voltage - Output	24 V, 12 V

Part	Height [z]	Height [z]	Voltage - Input	Voltage - Output	Type	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Applications	Form	Power - Rated
Tycon Systems Inc. UPSTL12/48-200-600	17.543 in	445.6 mm	120 VAC 240 VAC	12 V 24 V 48 V	Standby (No Regulation)	CE UL	612.5 mm	24.114 in	24.114 in	612.5 mm	General Purpose Industrial Control	Chassis Mount	600 W
Tycon Systems Inc. UPSTL12/24-100-600	17.543 in	445.6 mm	120 VAC 240 VAC	12 V 24 V	Standby (No Regulation)	CE UL	612.5 mm	24.114 in	24.114 in	612.5 mm	General Purpose Industrial Control	Chassis Mount	600 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

UPSPRO 600W 1200VA, 12/24VDC 20A

Technical documentation and resources

No documents available
