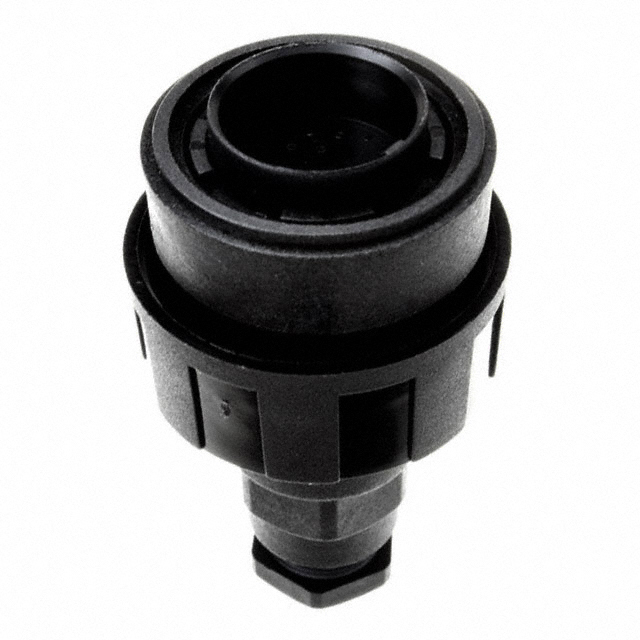

PX0820/P

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, PLUG, 25, PIN, CABLE MOUNT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, PLUG, 25, PIN, CABLE MOUNT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	PX0820/P

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp and Solder Cup
Features	Coupling Nut, Backshell
Housing Color	Black
Includes	1 Nut, 1 Gland, 1 Cage Clamp, 1 Backshell, 1 Connector, 1 Locking Ring
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	25
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shielding	Unshielded
Type	For Male Pins

Part	Contact Shape	Contact Type	Orientation	Mounting Type	Shielding	Features	Connector Type	Note	Ingress Protection	Type	Housing Color	Includes	Shell Material	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions
BULGIN LIMITED PX0820/P	Circular	Crimp and Solder Cup	Keyed	Free Hanging (In-Line)	Unshielded	Backshell Coupling Nut	Plug Housing	Contacts Not Included	IP68 - Dust Tight Waterproof	For Male Pins	Black	1 Backshell 1 Cage Clamp 1 Connector 1 Gland 1 Locking Ring 1 Nut	Glass Filled Nylon Polyamide (PA)	Nylon Polyamide (PA)	-20 C	70 °C	UL94 HB	25

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 (Power) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
