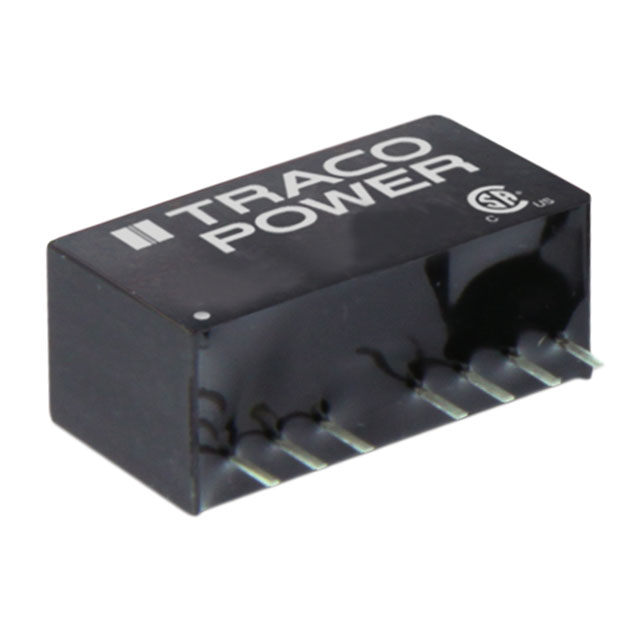

TMR 1221
ActiveTraco Power
DC DC CONVERTER +/-5V 2W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMR 1221 |
|---|---|
| Applications | ITE (Commercial) |
| Efficiency | 81 % |
| Features | Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-SIP Module |
| Package / Case | 7 Leads |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 21.8 mm |
| Size / Dimension [x] | 0.86 in |
| Size / Dimension [y] | 0.36 " |
| Size / Dimension [y] | 9.2 mm |
| Size / Dimension [z] | 0.44 " |
| Size / Dimension [z] | 11.1 mm |
| Supplier Device Package | Module |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 17.30 | |
| 10 | $ 15.67 | |||
| 25 | $ 15.16 | |||
| 50 | $ 14.78 | |||
| 100 | $ 14.41 | |||
| 250 | $ 13.93 | |||
| 500 | $ 13.58 | |||
Description
General part information
TMR 12 Series
Isolated Module DC DC Converter 2 Output 5V -5V 200mA, 200mA 9V - 18V Input
