0395011010

Active

Molex

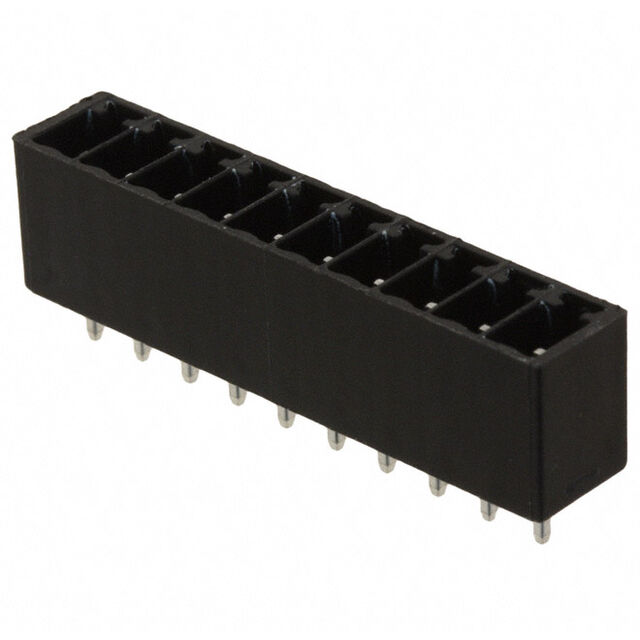

PLUGGABLE TERMINAL BLOCKS 3.5MM EURO HDR 10P VT

Deep-Dive with AI

Search across all available documentation for this part.

Documents39500-001 Prod Spec

0395011010

Active

Molex

PLUGGABLE TERMINAL BLOCKS 3.5MM EURO HDR 10P VT

Deep-Dive with AI

Documents39500-001 Prod Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395011010

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	3.56 mm
Contact Tail Length	0.14 in
Current - UL	8 A
Header Orientation	Vertical
Insulation Height	9.14 mm
Insulation Height	0.36 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	10
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	10
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

039501 Series

Part	Insulation Height	Insulation Height	Termination Style	Material Flammability Rating	Mounting Type	Contact Mating Finish	Number of Levels	Positions Per Level	Header Orientation	Type	Contact Material	Number of Positions	Pitch [x]	Pitch [x]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Current - UL	Voltage - UL	Contact Tail Length	Contact Tail Length	Number of Positions
Molex 0395016016	9.14 mm	0.36 in	Solder	UL94 V-0	Through Hole	Tin	1	16	Vertical	Header Male Pins Shrouded (4 Side)	Brass	16	3.5 mm	0.138 in	Green	-40 °C	105 ░C	8 A	300 V	3.56 mm	0.14 in
Molex 0395016513	9.14 mm	0.36 in	Solder	UL94 V-0	Through Hole	Gold	1	13	Vertical	Header Male Pins Shrouded (4 Side)	Brass		3.5 mm	0.138 in	Green	-40 °C	105 ░C	8 A	300 V	3.56 mm	0.14 in	13
Molex 0395011502	9.14 mm	0.36 in	Solder	UL94 V-0	Through Hole	Gold	1	2	Vertical	Header Male Pins Shrouded (4 Side)	Brass		3.5 mm	0.138 in	Black	-40 °C	105 ░C	8 A	300 V	3.56 mm	0.14 in	2
Molex 0395011009	9.14 mm	0.36 in	Solder	UL94 V-0	Through Hole	Tin	1	9	Vertical	Header Male Pins Shrouded (4 Side)	Brass		3.5 mm	0.138 in	Black	-40 °C	105 ░C	8 A	300 V	3.56 mm	0.14 in	9
Molex 0395016002	9.14 mm	0.36 in	Solder	UL94 V-0	Through Hole	Tin	1	2	Vertical	Header Male Pins Shrouded (4 Side)	Brass		3.5 mm	0.138 in	Green	-40 °C	105 ░C	8 A	300 V	3.56 mm	0.14 in	2
Molex 0395016502	9.14 mm	0.36 in	Solder	UL94 V-0	Through Hole	Gold	1	2	Vertical	Header Male Pins Shrouded (4 Side)	Brass		3.5 mm	0.138 in	Green	-40 °C	105 ░C	8 A	300 V	3.56 mm	0.14 in	2
Molex 0395016507	9.14 mm	0.36 in	Solder	UL94 V-0	Through Hole	Gold	1	7	Vertical	Header Male Pins Shrouded (4 Side)	Brass		3.5 mm	0.138 in	Green	-40 °C	105 ░C	8 A	300 V	3.56 mm	0.14 in	7
Molex 0395016508	9.14 mm	0.36 in	Solder	UL94 V-0	Through Hole	Gold	1	8	Vertical	Header Male Pins Shrouded (4 Side)	Brass		3.5 mm	0.138 in	Green	-40 °C	105 ░C	8 A	300 V	3.56 mm	0.14 in	8
Molex 0395011010	9.14 mm	0.36 in	Solder	UL94 V-0	Through Hole	Tin	1	10	Vertical	Header Male Pins Shrouded (4 Side)	Brass		3.5 mm	0.138 in	Black	-40 °C	105 ░C	8 A	300 V	3.56 mm	0.14 in	10
Molex 0395016009	9.14 mm	0.36 in	Solder	UL94 V-0	Through Hole	Tin	1	9	Vertical	Header Male Pins Shrouded (4 Side)	Brass		3.5 mm	0.138 in	Green	-40 °C	105 ░C	8 A	300 V	3.56 mm	0.14 in	9

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.70
		10	$ 2.38
		100	$ 1.89
		1872	$ 1.51
		5616	$ 1.41
Sager	N/A	3744	$ 1.45

Description

General part information

039501 Series

10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole

Documents

Technical documentation and resources

39500-001 Prod Spec

Datasheet
