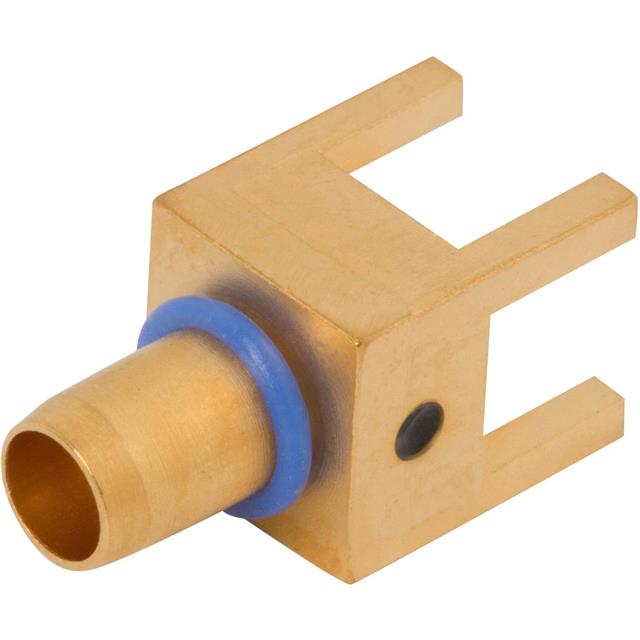

1485-6000

Active

Amphenol SV Microwave

BMMA MALE PCB THRU-HOLE CONNECTOR /INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Search across all available documentation for this part.

Active

Amphenol SV Microwave

BMMA MALE PCB THRU-HOLE CONNECTOR /INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Technical Specifications

Parameters and characteristics for this part

Specification	1485-6000

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BMMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	5000
Mounting Type	Through Hole
Number of Ports	1
Shield Termination	Solder

Part	Number of Ports	Contact Termination	Body Material	Mating Cycles	Impedance	Center Contact Plating	Housing Color	Connector Type	Center Contact Material	Body Finish	Connector Style	Fastening Type	Mounting Type	Shield Termination	Dielectric Material
Amphenol SV Microwave 1485-6000	1	Solder	Stainless Steel	5000	50 Ohms	Gold	Gold	Male Pin Plug	Beryllium Copper	Gold	BMMA	Snap-On	Through Hole	Solder	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BMMA Connector Plug, Male Pin 50 Ohms Through Hole Solder
