M1233 WH005

Active

ALPHA WIRE

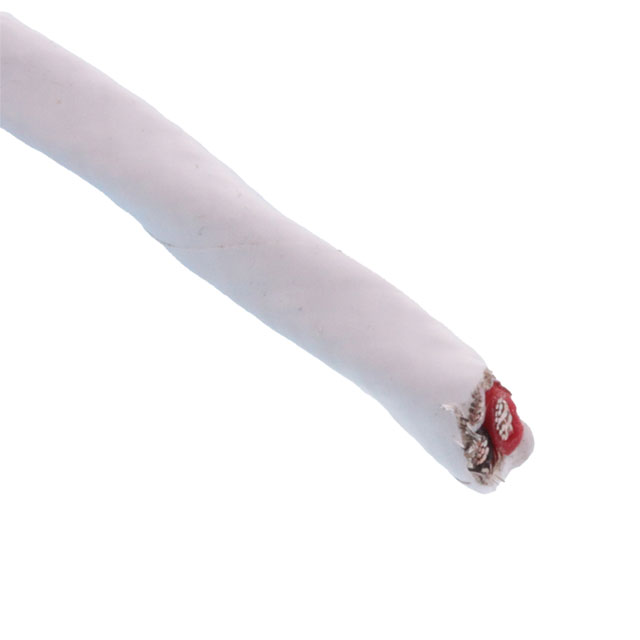

CABLE 3CON 20AWG WHT SHLD 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3CON 20AWG WHT SHLD 100'

Technical Specifications

Parameters and characteristics for this part

Specification	M1233 WH005

Cable Type	Multi-Conductor
Conductor Insulation	Polytetrafluoroethylene (PTFE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [custom]	32 AWG
Jacket (Insulation) Diameter [diameter]	4.34 mm
Jacket (Insulation) Diameter [diameter]	0.171 in
Jacket (Insulation) Material	Polytetrafluoroethylene (PTFE)
Jacket (Insulation) Thickness	0.0098 in
Jacket (Insulation) Thickness	0.25 mm
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	3
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Shield Coverage	85 %
Shield Material	Copper, Silver Coated
Shield Type	Braid
Voltage	600 V
Wire Gauge	20 AWG

Part	Conductor Material	Length [x]	Length [x]	Shield Coverage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Shield Type	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Jacket (Insulation) Material	Number of Conductors
ALPHA WIRE M1233 WH005	Copper Tinned	30.5 m	100 ft	85 %	4.34 mm	0.171 in	Polytetrafluoroethylene (PTFE)	0.0098 in	0.25 mm	Multi-Conductor	Copper Silver Coated	-55 °C	200 °C	20 AWG	Braid	19	32 AWG	600 V	Polytetrafluoroethylene (PTFE)	3

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 542.15

General part information

3 Conductor Multi-Conductor Cable White 20 AWG Braid 100.0' (30.5m)
