2725-2824-BL-01000-A
ActiveCnC Tech, LLC

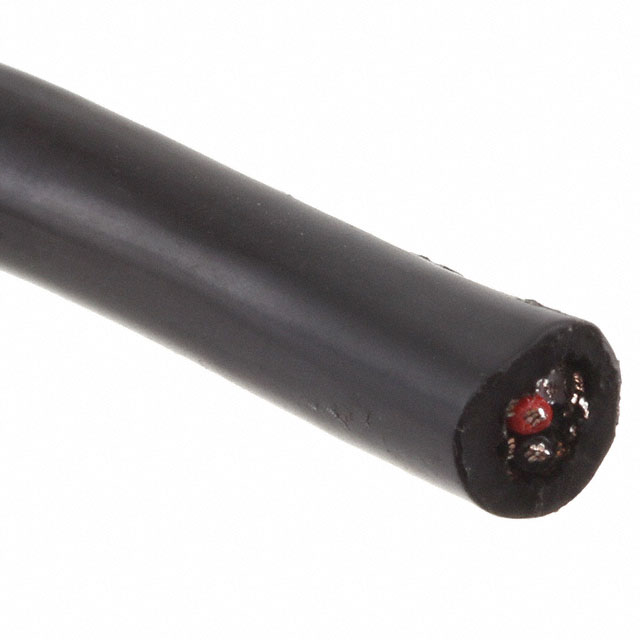

CABLE 4COND 24AWG/28AWG BLK 100'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2725-2824-BL-01000-A
ActiveCnC Tech, LLC
CABLE 4COND 24AWG/28AWG BLK 100'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2725-2824-BL-01000-A |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC), High Density Polyethylene (HDPE) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7, 7 |
| Conductor Strand [custom] | 0.0047 in, 0.0079 in |
| Features | Drain Wire |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.93 mm |
| Jacket (Insulation) Thickness | 0.0366 in |
| Jacket Color | Black |
| Length | 1000 ft |
| Length | 304.8 m, 15.24 m |
| Length [x] | 30.5 m |
| Length [x] | 100 ft, 50 ft |
| Number of Conductors | 4 |
| Operating Temperature | 80 °C |
| Ratings | UL Style 2725 |
| Shield Coverage | 100 % |
| Shield Material | Copper, Tinned, Aluminum |
| Shield Type | Foil, Braid |
| Usage | USB 2.0 |
| Voltage | 30 V |
| Wire Gauge | 28 AWG, 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 275.20 | |
| 2 | $ 261.76 | |||
| 3 | $ 254.15 | |||
| 5 | $ 244.84 | |||
| 7 | $ 238.86 | |||
| 10 | $ 232.65 | |||
| 25 | $ 217.30 | |||
| Spool | 1 | $ 36.92 | ||
| 1 | $ 20.80 | |||
| 2 | $ 19.84 | |||
| 3 | $ 34.55 | |||
| 5 | $ 32.97 | |||
| 5 | $ 18.57 | |||
| 10 | $ 17.72 | |||
| 10 | $ 31.39 | |||
| 20 | $ 16.87 | |||
| 25 | $ 29.42 | |||
| 50 | $ 15.81 | |||
| 50 | $ 27.84 | |||
| 100 | $ 14.96 | |||
| 100 | $ 26.65 | |||
| 200 | $ 14.33 | |||
| 500 | $ 13.80 | |||
Description
General part information
2725-2824 Series
4 (1 Pair + 2) Conductor Multi-Conductor Cable Black 24 AWG, 28 AWG Foil, Braid 100.0' (30.5m)
