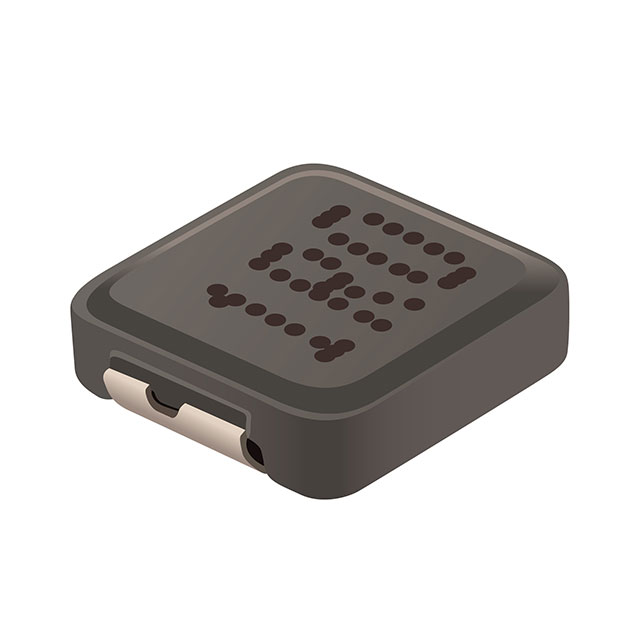

SRP5015TA-R33M
ActiveBourns Inc.
INDUCTOR, 0.33UH, 9A, 20%, SHIELDED
Deep-Dive with AI
Search across all available documentation for this part.
SRP5015TA-R33M
ActiveBourns Inc.
INDUCTOR, 0.33UH, 9A, 20%, SHIELDED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SRP5015TA-R33M |
|---|---|
| Current - Saturation (Isat) | 16 A |
| DC Resistance (DCR) | 9.8 mOhm |
| Frequency - Self Resonant | 120 MHz |
| Height - Seated (Max) [Max] | 1.5 mm |
| Height - Seated (Max) [Max] [z] | 0.059 " |
| Inductance | 330 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Carbonyl Powder |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Q @ Freq | 100 kHz, 5 |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 5.7 mm |
| Size / Dimension [x] | 0.224 in |
| Size / Dimension [y] | 5.2 mm |
| Size / Dimension [y] | 0.205 " |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.32 | |
| 10 | $ 1.12 | |||
| 25 | $ 1.02 | |||
| 50 | $ 0.95 | |||
| 100 | $ 0.79 | |||
| 250 | $ 0.73 | |||
| 500 | $ 0.69 | |||
| 1000 | $ 0.63 | |||
| Digi-Reel® | 1 | $ 1.32 | ||
| 10 | $ 1.12 | |||
| 25 | $ 1.02 | |||
| 50 | $ 0.95 | |||
| 100 | $ 0.79 | |||
| 250 | $ 0.73 | |||
| 500 | $ 0.69 | |||
| 1000 | $ 0.63 | |||
| Tape & Reel (TR) | 3500 | $ 0.61 | ||
| 7000 | $ 0.59 | |||
| 10500 | $ 0.57 | |||
Description
General part information
SRP5015TA Series
330 nH Shielded Drum Core, Wirewound Inductor 9 A 9.8mOhm Max Nonstandard
