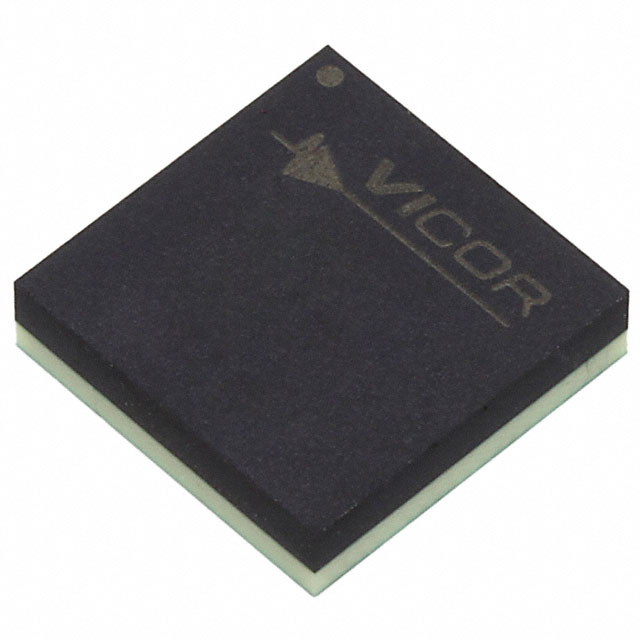

I13TL1A0

Active

Vicor Corporation

DGTL ISO 3000VRMS 3CH GP 8LGA

Search across all available documentation for this part.

Active

Vicor Corporation

DGTL ISO 3000VRMS 3CH GP 8LGA

Technical Specifications

Parameters and characteristics for this part

Specification	I13TL1A0

Channel Type	Unidirectional
Common Mode Transient Immunity (Min) [Min]	3 kV/µs
Inputs - Side 1/Side 2 [custom]	1
Inputs - Side 1/Side 2 [custom]	2
Isolated Power	False
Mounting Type	Surface Mount
Number of Channels [custom]	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-LGA
Propagation Delay tpLH / tpHL (Max) [Max] [custom]	58 ns
Propagation Delay tpLH / tpHL (Max) [Max] [custom]	84 ns
Rise / Fall Time (Typ) [custom]	22 ns
Rise / Fall Time (Typ) [custom]	65 ns
Supplier Device Package	8-LGA (10x10)
Technology	Magnetic Coupling
Type	General Purpose
Voltage - Isolation	3000 VAC
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.5 V

Part	Channel Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Voltage - Isolation	Isolated Power	Common Mode Transient Immunity (Min) [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Technology	Supplier Device Package	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Package / Case	Number of Channels [custom]	Mounting Type
Vicor Corporation I13TL1A0	Unidirectional	General Purpose	125 °C	-40 °C	1	2	3000 VAC		3 kV/µs	3.6 V	2.5 V	58 ns	84 ns	Magnetic Coupling	8-LGA (10x10)	22 ns	65 ns	8-LGA	3	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Digital Isolator 3000Vrms 3 Channel 3kV/µs CMTI 8-LGA
