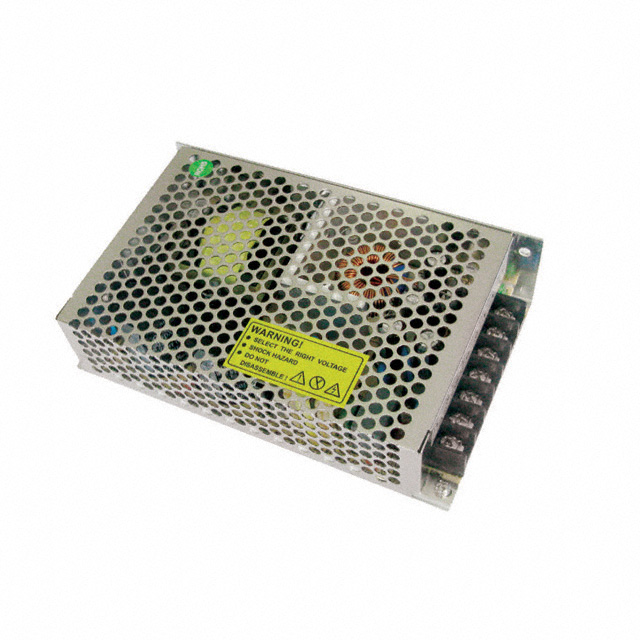

QPD-100-12

Obsolete

Qualtek

AC/DC CONVERTER 12V 100W

Search across all available documentation for this part.

Obsolete

Qualtek

AC/DC CONVERTER 12V 100W

Technical Specifications

Parameters and characteristics for this part

Specification	QPD-100-12

Applications	ITE (Commercial)
Approval Agency	CE
Efficiency	81 %
Features	Universal Input, Adjustable Output, DC Input Capable
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	100 W
Size / Dimension [x]	6.3 "
Size / Dimension [x]	160 mm
Size / Dimension [y]	98 mm
Size / Dimension [y]	3.86 in
Size / Dimension [z]	38 mm
Size / Dimension [z]	1.5 "
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	88 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Voltage - Output 1	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Voltage - Isolation	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Features	Type	Power (Watts)
Qualtek QPD-100-12	12 V	ITE (Commercial)	38 mm	98 mm	6.3 "	3.86 in	1.5 "	160 mm	81 %	3000 V	Chassis Mount	264 VAC	88 VAC	1	CE	-20 °C	70 °C	Adjustable Output DC Input Capable Universal Input	Enclosed	100 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Enclosed AC DC Converters 1 Output 12V 88 ~ 264 VAC Input
