LPH1-02C24-5080-00

Active

New Energy

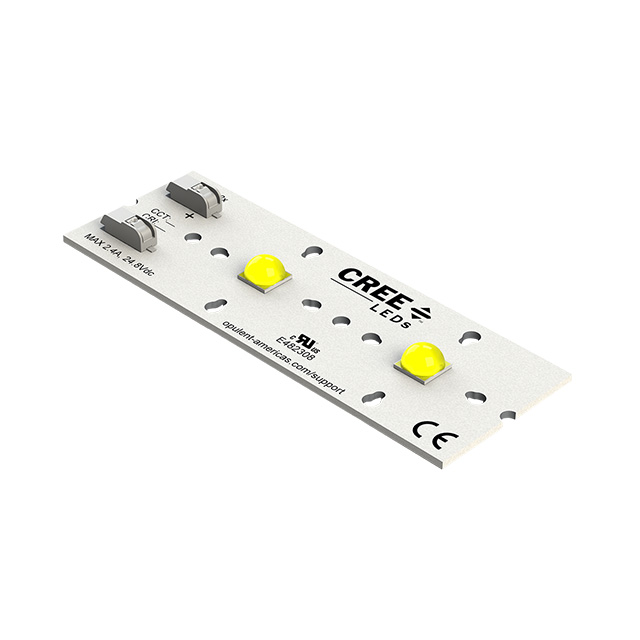

LED MOD XHP70.2 WH LNR STR 5000K

Search across all available documentation for this part.

Active

New Energy

LED MOD XHP70.2 WH LNR STR 5000K

Technical Specifications

Parameters and characteristics for this part

Specification	LPH1-02C24-5080-00

CCT (K)	5000 K
CCT (K)	5-Step MacAdam Ellipse
Color	Cool, White
Configuration	Linear Light Strip
CRI (Color Rendering Index)	80
Current - Test	1.05 A
Lens Type	Domed
Lumens/Watt @ Current - Test	156 lm/W
Luminous Flux @ Current/Temperature	3660 lm
Size / Dimension [x]	93.98 mm
Size / Dimension [y]	32.99 mm
Temperature - Test	85 °C
Type	LED Module
Voltage - Forward (Vf) (Typ)	22.4 V

Part	Voltage - Forward (Vf) (Typ)	Temperature - Test	Color	Type	Lens Type	Configuration	Luminous Flux @ Current/Temperature	CCT (K)	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Size / Dimension [x]	Size / Dimension [y]	Current - Test	CCT (K)
New Energy LPH1-02C24-3080-00	22.4 V	85 °C	Warm White	LED Module	Domed	Linear Light Strip	3420 lm	3000 K	145 lm/W	80	93.98 mm	32.99 mm	1.05 A
New Energy LPH1-02C24-2780-00	22.4 V	85 °C	Warm White	LED Module	Domed	Linear Light Strip	2970 lm	2700 K	126 lm/W	80	93.98 mm	32.99 mm	1.05 A
New Energy LPH1-02C24-5770-00	22.4 V	85 °C	Cool White	LED Module	Domed	Linear Light Strip	3660 lm	5700 K	156 lm/W	70	93.98 mm	32.99 mm	1.05 A
New Energy LPH1-02C24-3070-00	22.4 V	85 °C	Warm White	LED Module	Domed	Linear Light Strip	3420 lm	3000 K	145 lm/W	70	93.98 mm	32.99 mm	1.05 A
New Energy LPH1-02C24-2790-00	22.4 V	85 °C	Warm White	LED Module	Domed	Linear Light Strip	2970 lm	2700 K	126 lm/W	90	93.98 mm	32.99 mm	1.05 A
New Energy LPH1-02C24-5080-00	22.4 V	85 °C	Cool White	LED Module	Domed	Linear Light Strip	3660 lm	5000 K	156 lm/W	80	93.98 mm	32.99 mm	1.05 A	5-Step MacAdam Ellipse
New Energy LPH1-02C24-4080-00	22.4 V	85 °C	Neutral White	LED Module	Domed	Linear Light Strip	3660 lm	4000 K	156 lm/W	80	93.98 mm	32.99 mm	1.05 A
New Energy LPH1-02C24-5780-00

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	500	$ 26.06

General part information

LED Lighting COBs Engines Modules LED Module XHP70.2 White, Cool Linear Light Strip
