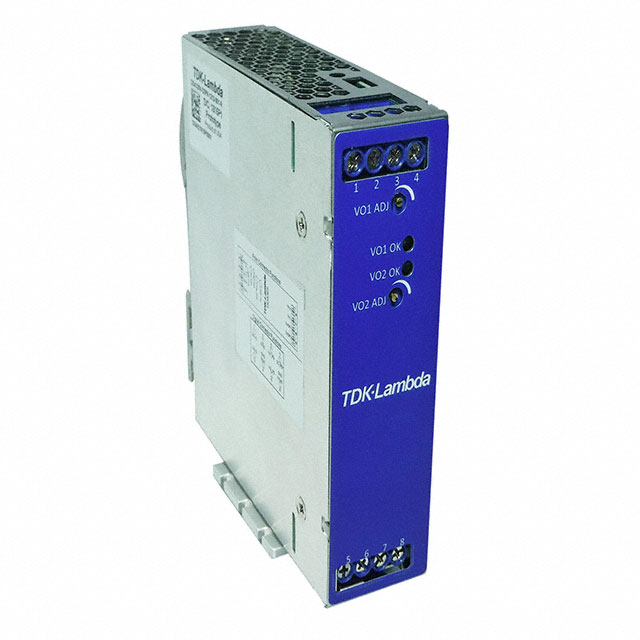

DDA325N-D2PN-1212-001

Active

TDK-LAMBDA

NON-ISOLATED DC/DC CONVERTERS DC DC CONVERTER +/-12V 325W

Search across all available documentation for this part.

Active

TDK-LAMBDA

NON-ISOLATED DC/DC CONVERTERS DC DC CONVERTER +/-12V 325W

Technical Specifications

Parameters and characteristics for this part

Specification	DDA325N-D2PN-1212-001

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max)	8 A, 14 A
DC Voltage - Input (Max) [Max]	40 V
DC Voltage - Input (Min) [Min]	9 V
Efficiency	94 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Input Type	DC
Number of Outputs	2
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	325 W
Size / Dimension [x]	115.1 mm
Size / Dimension [x]	4.53 "
Size / Dimension [y]	1.44 in
Size / Dimension [y]	36.6 mm
Size / Dimension [z]	4.86 in
Size / Dimension [z]	123.4 mm
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

Non-Isolated DC/DC Converters DC DC CONVERTER 12V, 5V 500W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Power (Watts)	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Features	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Applications	Approval Agency	Number of Outputs	Voltage - Output 1	Input Type	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2
TDK-LAMBDA DDA250N-S1PX-12-001	100 °C	-40 °C	95 %	250 W	9 V	53 V	20 A	Adjustable Output Remote On/Off Remote Sense	1.44 in	36.6 mm	115.1 mm	4.86 in	4.53 "	123.4 mm	ITE (Commercial)	CE	1	12 V	DC
TDK-LAMBDA DDA500N-D2PP-1205-001	100 °C	-40 °C	95 %	500 W	9 V	53 V		Adjustable Output Remote On/Off Remote Sense	1.44 in	36.6 mm	115.1 mm	4.86 in	4.53 "	123.4 mm	ITE (Commercial)	CE	2	12 V	DC	20 A	20 A	5 V
TDK-LAMBDA DDA325N-D2PN-1212-001	100 °C	-40 °C	94 %	325 W	9 V	40 V		Adjustable Output Remote On/Off Remote Sense	1.44 in	36.6 mm	115.1 mm	4.86 in	4.53 "	123.4 mm	ITE (Commercial)	CE	2	12 V	DC		8 A 14 A	-12 V
