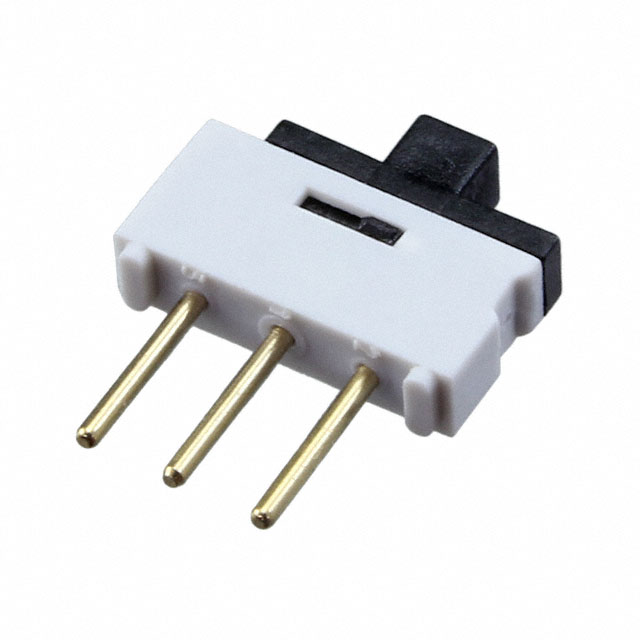

09.03290.01
ActiveEAO
SWITCH SLIDE SPDT 0.5A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
09.03290.01
ActiveEAO
SWITCH SLIDE SPDT 0.5A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 09.03290.01 |
|---|---|
| Actuator Length [x] | 1.4 mm |
| Actuator Type | Recessed |
| Circuit | SPDT |
| Contact Finish | Gold |
| Contact Material | Nickel |
| Current Rating (Amps) | 500 mA |
| Electrical Life | 1000 Cycles |
| Mechanical Life | 10000 Steps |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Switch Function | On-On |
| Termination Style | PC Pin |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.51 | |
| 10 | $ 2.16 | |||
| 25 | $ 2.04 | |||
| 50 | $ 1.95 | |||
| 100 | $ 1.87 | |||
| 250 | $ 1.76 | |||
| 500 | $ 1.68 | |||
| 1000 | $ 1.61 | |||
Description
General part information
09.03290 Series
Slide Switch SPDT Through Hole
