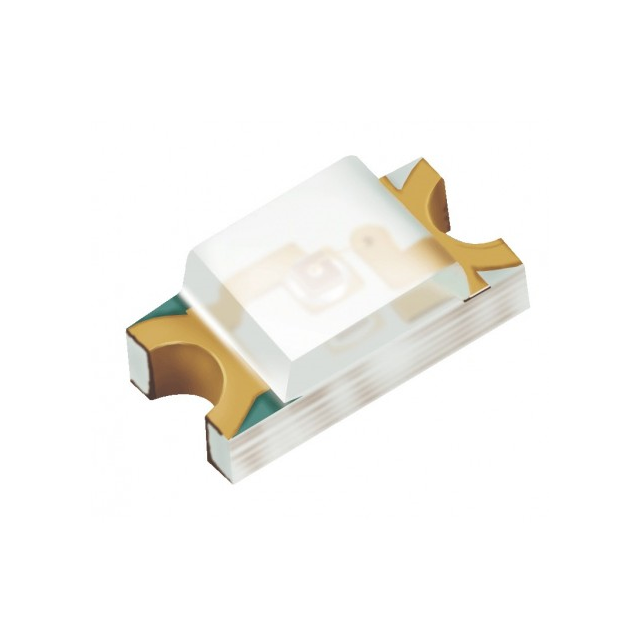

EAST3215YA1

Active

Everlight Electronics Co Ltd

LED UNI-COLOR YELLOW 591NM 2-PIN SMD-B T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EAST3215YA1

Active

Everlight Electronics Co Ltd

LED UNI-COLOR YELLOW 591NM 2-PIN SMD-B T/R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EAST3215YA1

Color	Yellow
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	1.1 mm
Lens Color	Colorless
Lens Size [x]	2 mm
Lens Size [y]	1.5 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	79 mcd
Mounting Type	Surface Mount
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	1.5 mm
Supplier Device Package	2-SMD
Viewing Angle	130 °
Voltage - Forward (Vf) (Typ)	2.05 V
Wavelength - Dominant	589 nm
Wavelength - Peak	591 nm

EAST3215 Series

Part	Color	Current - Test	Lens Style	Lens Transparency	Wavelength - Dominant	Size / Dimension [y]	Size / Dimension [x]	Voltage - Forward (Vf) (Typ)	Package / Case	Millicandela Rating	Height (Max) [Max] [z]	Configuration	Wavelength - Peak	Lens Color	Lens Size [y]	Lens Size [x]	Viewing Angle	Mounting Type	Supplier Device Package
Everlight Electronics Co Ltd EAST3215BA3	Blue	20 mA	Rectangle with Flat Top	Clear	470 nm	1.5 mm	3.2 mm	3 V	1206 (3216 Metric)	106 mcd	1.1 mm	Standard	468 nm	Colorless	1.5 mm	2 mm	130 °	Surface Mount	2-SMD
Everlight Electronics Co Ltd EAST3215RA7	Red	5 mA	Rectangle with Flat Top	Clear	626 nm	1.5 mm	3.2 mm	2 V	1206 (3216 Metric)	40 mcd	1.1 mm	Standard	632 nm	Colorless	1.5 mm	2 mm	140 °	Surface Mount	2-SMD
Everlight Electronics Co Ltd EAST3215YA4-AM	Yellow	20 mA	Rectangle with Flat Top	Clear	590 nm	1.5 mm	3.2 mm	2.05 V	1206 (3216 Metric)	268 mcd	1.1 mm	Standard	591 nm	Colorless	1.5 mm	2 mm	130 °	Surface Mount	2-SMD
Everlight Electronics Co Ltd EAST3215BA5	Blue	20 mA	Rectangle with Flat Top	Clear	471 nm	1.5 mm	3.2 mm	3.3 V	2-SMD No Lead	79 mcd	1.1 mm	Standard	468 nm	Clear	1.5 mm	2 mm	130 °	Surface Mount
Everlight Electronics Co Ltd EAST3215YA1	Yellow	20 mA	Rectangle with Flat Top	Clear	589 nm	1.5 mm	3.2 mm	2.05 V	1206 (3216 Metric)	79 mcd	1.1 mm	Standard	591 nm	Colorless	1.5 mm	2 mm	130 °	Surface Mount	2-SMD
Everlight Electronics Co Ltd EAST3215WA2	White	5 mA	Rectangle with Flat Top	Diffused		1.5 mm	3.2 mm	3 V	1206 (3216 Metric)	158 mcd	1.1 mm	Standard		Yellow	1.5 mm	2 mm	140 °	Surface Mount	2-SMD
Everlight Electronics Co Ltd EAST3215RA1	Red	20 mA	Rectangle with Flat Top	Clear	626 nm	1.5 mm	3.2 mm	2.05 V	1206 (3216 Metric)	106 mcd	1.1 mm	Standard	632 nm	Colorless	1.5 mm	2 mm	130 °	Surface Mount	2-SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.45
		10	$ 0.30
		100	$ 0.20
		500	$ 0.14
		1000	$ 0.11
	Digi-Reel®	1	$ 0.45
		10	$ 0.30
		100	$ 0.20
		500	$ 0.14
		1000	$ 0.11
	Tape & Reel (TR)	2000	$ 0.07

Description

General part information

EAST3215 Series

Yellow 589nm LED Indication - Discrete 2.05V 1206 (3216 Metric)
